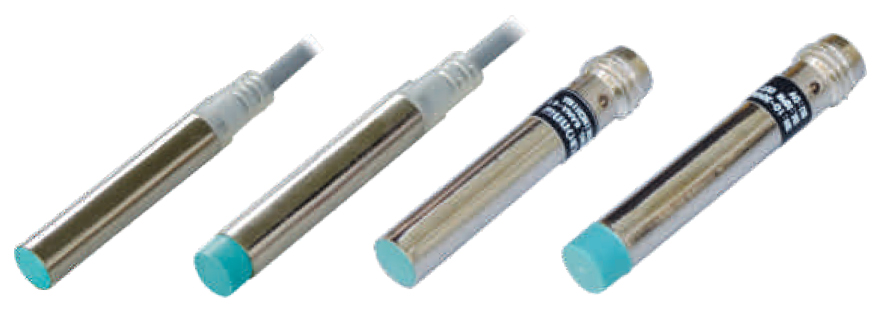

Цилиндрические индуктивные датчики Rock LQ6.5 (ø6.5мм)
Материал корпуса:хромированная латунь
Посадочный диаметр: ø6.5мм
Класс защиты:IP67
Температура внешней среды: -25ºС..+70ºС
Стандарты: GB/T14048.10
Напряжение питания: 10-30VDC
Максимальный ток нагрузки: 100мА
Частота переключения: 3000Hz
| Раб.форма | Тип | Sn | Установка | Выход | Метод коммутации | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Расстояние срабатывания | Частота перекл., Hz | NPN | PNP | NO | NC | Кольцевой LED индикатор, желтый | LED индикатор, желтый | Кабель 2м | Разъем | ||
| DC 2 линии | LQ6.5M01ADA | 1 | 1000 | ♦ | ♦ | ♦ | |||||
| LQ6.5M01ADA-E1 | 1 | 800 | ♦ | ♦ | ♦ | ||||||
| LQ6.5F02ADA | 2 | 800 | ♦ | ♦ | ♦ | ||||||
| LQ6.5F02ADA-E1 | 2 | 800 | ♦ | ♦ | ♦ | ||||||
| LQ6.5F02ADB | 2 | 800 | ♦ | ♦ | ♦ | ||||||
| LQ6.5F02ADB-E1 | 2 | 2000 | ♦ | ♦ | ♦ | ||||||
| DC 3 линии | LQ6.5M01ANA | 1 | 2000 | ♦ | ♦ | ♦ | |||||
| LQ6.5M01ANB | 1 | 2000 | ♦ | ♦ | ♦ | ♦ | |||||
| LQ6.5M01APA | 1 | 2000 | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
| LQ6.5M01APB | 1 | 2000 | ♦ | ♦ | ♦ | ♦ | |||||
| LQ6.5M01ANA-E1 | 1 | 2000 | ♦ | ♦ | ♦ | ||||||
| LQ6.5M01ANB-E1 | 1 | 2000 | ♦ | ♦ | ♦ | ♦ | |||||
| LQ6.5M01APA-E1 | 1 | 2000 | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
| LQ6.5M01APB-E1 | 1 | 2000 | ♦ | ♦ | ♦ | ♦ | |||||
| LQ6.5F02ANA | 2 | 1000 | ♦ | ♦ | ♦ | ||||||
| LQ6.5F02ANB | 2 | 1000 | ♦ | ♦ | ♦ | ♦ | |||||
| LQ6.5F02APA | 2 | 1000 | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
| LQ6.5F02APB | 2 | 1000 | ♦ | ♦ | ♦ | ♦ | |||||
| LQ6.5F02ANA-E1 | 2 | 1000 | ♦ | ♦ | ♦ | ||||||
| LQ6.5F02ANB-E1 | 2 | 1000 | ♦ | ♦ | ♦ | ♦ | |||||
| LQ6.5F02APA-E1 | 2 | 1000 | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
| LQ6.5F02APB-E1 | 2 | 1000 | ♦ | ♦ | ♦ | ♦ | |||||
|

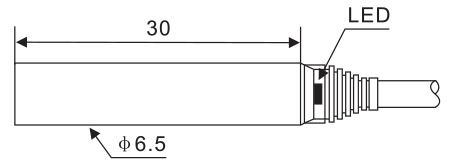

LQ6.5M01ADA LQ6.5M01ANA LQ6.5M01ANB LQ6.5M01APA LQ6.5M01APB |

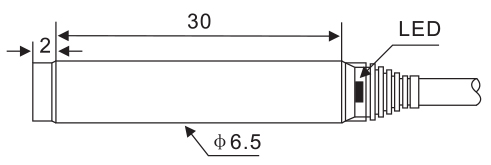

LQ6.5F02ADA LQ6.5F02ADB LQ6.5F02ANA LQ6.5F02ANB LQ6.5F02APA LQ6.5F02APB |

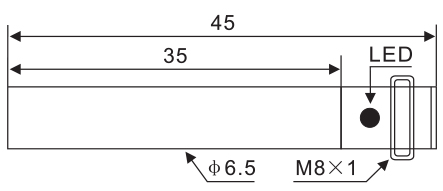

LQ6.5M01ADA-E1 LQ6.5M01ANA-E1 LQ6.5M01ANB-E1 LQ6.5M01APA-E1 LQ6.5M01APB-E1 |

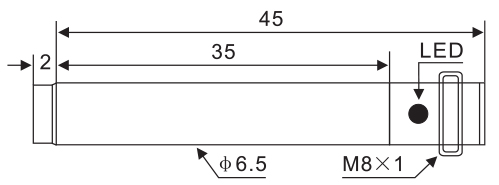

LQ6.5F02ADA-E1 LQ6.5F02ADB-E1 LQ6.5F02ANA-E1 LQ6.5F02ANB-E1 LQ6.5F02APA-E1 LQ6.5F02APB-E1 |
 |
 |
 |
 |
