Seco

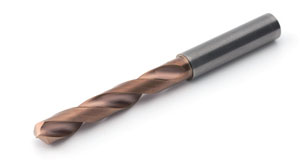

Seco Universal - это многофункциональные цельные твердосплавные сверла для общей обработки, применяемые в широком диапазоне материалов во всех сегментах рынка. Благодаря самоцентрирующейся конструкции с вершиной 140°, полированным стружечным канавкам и высокому качеству сверла, достигается высокая универсальность и безопасность обработки при оптимальном сочетании цены и качества.
 Цилиндрический хвостовик DIN 6537A
Seco Universal – SD1103
сверла secoсверла seco размеры
Внешняя подача СОЖ
Угол вершины: 140°
Покрытие: AlCrN
Допуск отверстия: IT8-9

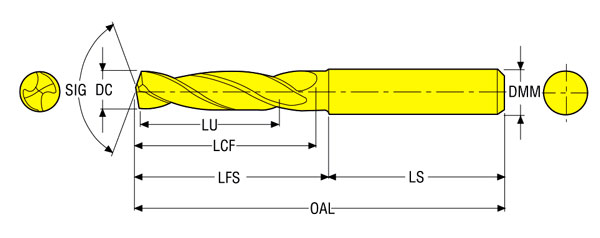

DC m7, мм DC m7, дюйм LU Артикул изделия (для заказа) Обозначение OAL LS LCF DMM
3,2 14 2898977 SD1103-0320-014-06R1 62 36 20 6
3,25 14 2898978 SD1103-0325-014-06R1 62 36 20 6
3,3 14 2898979 SD1103-0330-014-06R1 62 36 20 6
3,4 14 2898980 SD1103-0340-014-06R1 62 36 20 6
3,5 14 2898981 SD1103-0350-014-06R1 62 36 20 6
3,572 9/64 14 2898982 SD1103-0357-014-06R1 62 36 20 6
3,6 14 2898983 SD1103-0360-014-06R1 62 36 20 6
3,65 14 2898984 SD1103-0365-014-06R1 62 36 20 6
3,7 14 2898985 SD1103-0370-014-06R1 62 36 20 6
3,8 17 2898986 SD1103-0380-017-06R1 66 36 24 6
3,9 17 2898987 SD1103-0390-017-06R1 66 36 24 6
3,969 5/32 17 2898988 SD1103-0397-017-06R1 66 36 24 6
4 17 2898989 SD1103-0400-017-06R1 66 36 24 6
4,1 17 2898990 SD1103-0410-017-06R1 66 36 24 6
4,2 17 2898991 SD1103-0420-017-06R1 66 36 24 6
4,3 17 2898992 SD1103-0430-017-06R1 66 36 24 6
4,366 11/64 17 2898993 SD1103-0437-017-06R1 66 36 24 6
4,4 17 2898994 SD1103-0440-017-06R1 66 36 24 6
4,5 17 2898995 SD1103-0450-017-06R1 66 36 24 6
4,6 17 2898996 SD1103-0460-017-06R1 66 36 24 6
4,65 17 2898997 SD1103-0465-017-06R1 66 36 24 6
4,7 17 2898998 SD1103-0470-017-06R1 66 36 24 6
4,763 3/16 20 2898999 SD1103-0476-020-06R1 66 36 28 6
4,8 20 2899000 SD1103-0480-020-06R1 66 36 28 6
4,9 20 2899001 SD1103-0490-020-06R1 66 36 28 6
5 20 2899002 SD1103-0500-020-06R1 66 36 28 6
5,1 20 2899003 SD1103-0510-020-06R1 66 36 28 6
5,159 13/64 20 2899004 SD1103-0516-020-06R1 66 36 28 6
5,2 20 2899005 SD1103-0520-020-06R1 66 36 28 6
5,3 20 2899006 SD1103-0530-020-06R1 66 36 28 6
5,4 20 2899007 SD1103-0540-020-06R1 66 36 28 6
5,5 20 2899008 SD1103-0550-020-06R1 66 36 28 6
5,55 20 2899009 SD1103-0555-020-06R1 66 36 28 6
5,556 7/32 20 2899010 SD1103-0556-020-06R1 66 36 28 6
5,6 20 2899011 SD1103-0560-020-06R1 66 36 28 6
5,7 20 2899012 SD1103-0570-020-06R1 66 36 28 6
5,8 20 2899013 SD1103-0580-020-06R1 66 36 28 6
5,9 20 2899014 SD1103-0590-020-06R1 66 36 28 6
5,953 15/64 20 2899015 SD1103-0595-020-06R1 66 36 28 6
6 20 2899016 SD1103-0600-020-06R1 66 36 28 6
6,1 24 2899017 SD1103-0610-024-08R1 79 36 34 8
6,2 24 2899018 SD1103-0620-024-08R1 79 36 34 8
6,3 24 2899019 SD1103-0630-024-08R1 79 36 34 8
6,35 1/4 24 2899020 SD1103-0635-024-08R1 79 36 34 8
6,4 24 2899021 SD1103-0640-024-08R1 79 36 34 8
6,5 24 2899022 SD1103-0650-024-08R1 79 36 34 8
6,6 24 2899024 SD1103-0660-024-08R1 79 36 34 8
6,747 17/64 24 2899025 SD1103-0675-024-08R1 79 36 34 8
6,8 24 2899026 SD1103-0680-024-08R1 79 36 34 8
6,9 24 2899027 SD1103-0690-024-08R1 79 36 34 8
7 24 2899028 SD1103-0700-024-08R1 79 36 34 8
7,1 29 2899029 SD1103-0710-029-08R1 79 36 41 8
7,144 9/32 29 2899030 SD1103-0714-029-08R1 79 36 41 8
7,2 29 2899031 SD1103-0720-029-08R1 79 36 41 8
7,3 29 2899032 SD1103-0730-029-08R1 79 36 41 8
7,4 29 2899033 SD1103-0740-029-08R1 79 36 41 8
7,5 29 2899034 SD1103-0750-029-08R1 79 36 41 8
7,541 19/64 29 2899035 SD1103-0754-029-08R1 79 36 41 8
7,55 29 2899036 SD1103-0755-029-08R1 79 36 41 8
7,6 29 2899037 SD1103-0760-029-08R1 79 36 41 8
7,7 29 2899038 SD1103-0770-029-08R1 79 36 41 8
7,8 29 2899040 SD1103-0780-029-08R1 79 36 41 8
7,9 29 2899041 SD1103-0790-029-08R1 79 36 41 8
7,938 5/16 29 2899042 SD1103-0794-029-08R1 79 36 41 8
8 29 2899043 SD1103-0800-029-08R1 79 36 41 8
8,1 35 2899044 SD1103-0810-035-10R1 89 40 47 10
8,2 35 2899045 SD1103-0820-035-10R1 89 40 47 10
8,3 35 2899046 SD1103-0830-035-10R1 89 40 47 10
8,334 21/64 35 2899047 SD1103-0833-035-10R1 89 40 47 10
8,4 35 2899048 SD1103-0840-035-10R1 89 40 47 10
8,5 35 2899049 SD1103-0850-035-10R1 89 40 47 10
8,6 35 2899050 SD1103-0860-035-10R1 89 40 47 10
8,7 35 2899051 SD1103-0870-035-10R1 89 40 47 10
8,731 11/32 35 2899052 SD1103-0873-035-10R1 89 40 47 10
8,8 35 2899053 SD1103-0880-035-10R1 89 40 47 10
8,9 35 2899054 SD1103-0890-035-10R1 89 40 47 10
9 35 2899055 SD1103-0900-035-10R1 89 40 47 10
9,1 35 2899056 SD1103-0910-035-10R1 89 40 47 10
9,128 23/64 35 2899058 SD1103-0913-035-10R1 89 40 47 10
9,2 35 2899059 SD1103-0920-035-10R1 89 40 47 10
9,3 35 2899060 SD1103-0930-035-10R1 89 40 47 10
9,4 35 2899061 SD1103-0940-035-10R1 89 40 47 10
9,5 35 2899062 SD1103-0950-035-10R1 89 40 47 10
9,525 3/8 35 2899063 SD1103-0953-035-10R1 89 40 47 10
9,55 35 2899064 SD1103-0955-035-10R1 89 40 47 10
9,6 35 2899065 SD1103-0960-035-10R1 89 40 47 10
9,7 35 2899066 SD1103-0970-035-10R1 89 40 47 10
9,8 35 2899067 SD1103-0980-035-10R1 89 40 47 10
9,9 35 2899068 SD1103-0990-035-10R1 89 40 47 10
9,922 25/64 35 2899069 SD1103-0992-035-10R1 89 40 47 10
10 35 2899070 SD1103-1000-035-10R1 89 40 47 10
10,2 40 2899071 SD1103-1020-040-12R1 102 45 55 12
10,319 12/32 40 2899072 SD1103-1032-040-12R1 102 45 55 12
10,4 40 2899073 SD1103-1040-040-12R1 102 45 55 12
10,5 40 2899074 SD1103-1050-040-12R1 102 45 55 12
10,6 40 2899075 SD1103-1060-040-12R1 102 45 55 12
10,716 27/64 40 2899076 SD1103-1072-040-12R1 102 45 55 12
10,8 40 2899077 SD1103-1080-040-12R1 102 45 55 12
10,9 40 2899078 SD1103-1090-040-12R1 102 45 55 12
11 40 2899079 SD1103-1100-040-12R1 102 45 55 12
11,1 40 2899080 SD1103-1110-040-12R1 102 45 55 12
11,113 7/16 40 2899081 SD1103-1111-040-12R1 102 45 55 12
11,2 40 2899082 SD1103-1120-040-12R1 102 45 55 12
11,3 40 2899083 SD1103-1130-040-12R1 102 45 55 12
11,4 40 2899084 SD1103-1140-040-12R1 102 45 55 12
11,5 40 2899085 SD1103-1150-040-12R1 102 45 55 12
11,509 29/64 40 2899086 SD1103-1151-040-12R1 102 45 55 12
11,55 40 2899087 SD1103-1155-040-12R1 102 45 55 12
11,6 40 2899088 SD1103-1160-040-12R1 102 45 55 12
11,7 40 2899089 SD1103-1170-040-12R1 102 45 55 12
11,8 40 2899090 SD1103-1180-040-12R1 102 45 55 12
11,9 40 2899091 SD1103-1190-040-12R1 102 45 55 12
11,906 15/32 40 2899092 SD1103-1191-040-12R1 102 45 55 12
12 40 2899093 SD1103-1200-040-12R1 102 45 55 12
12,1 43 2899094 SD1103-1210-043-14R1 107 45 60 14
12,2 43 2899095 SD1103-1220-043-14R1 107 45 60 14
12,303 31/64 43 2899096 SD1103-1230-043-14R1 107 45 60 14
12,4 43 2899097 SD1103-1240-043-14R1 107 45 60 14
12,5 43 2899098 SD1103-1250-043-14R1 107 45 60 14
12,6 43 2899099 SD1103-1260-043-14R1 107 45 60 14
12,7 1/2 43 2899100 SD1103-1270-043-14R1 107 45 60 14
12,75 43 2899101 SD1103-1275-043-14R1 107 45 60 14
12,8 43 2899102 SD1103-1280-043-14R1 107 45 60 14
12,9 43 2899103 SD1103-1290-043-14R1 107 45 60 14
13 43 2899104 SD1103-1300-043-14R1 107 45 60 14
13,1 43 2899105 SD1103-1310-043-14R1 107 45 60 14
13,2 43 2899106 SD1103-1320-043-14R1 107 45 60 14
13,3 43 2899107 SD1103-1330-043-14R1 107 45 60 14
13,4 43 2899108 SD1103-1340-043-14R1 107 45 60 14
13,494 17/32 43 2899109 SD1103-1349-043-14R1 107 45 60 14
13,5 43 2899110 SD1103-1350-043-14R1 107 45 60 14
13,6 43 2899111 SD1103-1360-043-14R1 107 45 60 14
13,7 43 2899112 SD1103-1370-043-14R1 107 45 60 14
13,8 43 2899113 SD1103-1380-043-14R1 107 45 60 14
13,9 43 2899114 SD1103-1390-043-14R1 107 45 60 14
14 43 2899115 SD1103-1400-043-14R1 107 45 60 14
14,2 45 2899116 SD1103-1420-045-16R1 115 48 65 16
14,288 9/16 45 2899117 SD1103-1429-045-16R1 115 48 65 16
14,5 45 2899119 SD1103-1450-045-16R1 115 48 65 16
14,7 45 2899120 SD1103-1470-045-16R1 115 48 65 16
14,75 45 2899121 SD1103-1475-045-16R1 115 48 65 16
14,8 45 2899122 SD1103-1480-045-16R1 115 48 65 16
15 45 2899123 SD1103-1500-045-16R1 115 48 65 16
15,1 45 2899124 SD1103-1510-045-16R1 115 48 65 16
15,3 45 2899125 SD1103-1530-045-16R1 115 48 65 16
15,5 45 2899126 SD1103-1550-045-16R1 115 48 65 16
15,7 45 2899127 SD1103-1570-045-16R1 115 48 65 16
15,8 45 2899128 SD1103-1580-045-16R1 115 48 65 16
15,875 5/8 45 2899129 SD1103-1588-045-16R1 115 48 65 16
16 45 2899130 SD1103-1600-045-16R1 115 48 65 16
16,5 51 2899131 SD1103-1650-051-18R1 123 48 73 18
17 51 2899132 SD1103-1700-051-18R1 123 48 73 18
17,5 51 2899133 SD1103-1750-051-18R1 123 48 73 18
18 51 2899134 SD1103-1800-051-18R1 123 48 73 18
18,5 55 2899135 SD1103-1850-055-20R1 131 50 79 20
19 55 2899136 SD1103-1900-055-20R1 131 50 79 20
19,05 3/4 55 2899137 SD1103-1905-055-20R1 131 50 79 20
19,5 55 2899138 SD1103-1950-055-20R1 131 50 79 20
20 55 2899139 SD1103-2000-055-20R1 131 50 79 20
Seco Universal – SD1103A
3 14 2898244 SD1103A-0300-014-06R1 62 36 20 6
3,1 14 2898245 SD1103A-0310-014-06R1 62 36 20 6
3,175 1/8 14 2898246 SD1103A-0318-014-06R1 62 36 20 6
3,2 14 2898247 SD1103A-0320-014-06R1 62 36 20 6
3,25 14 2898248 SD1103A-0325-014-06R1 62 36 20 6
3,3 14 2898249 SD1103A-0330-014-06R1 62 36 20 6
3,4 14 2898250 SD1103A-0340-014-06R1 62 36 20 6
3,5 14 2898251 SD1103A-0350-014-06R1 62 36 20 6
3,572 9/64 14 2898252 SD1103A-0357-014-06R1 62 36 20 6
3,6 14 2898253 SD1103A-0360-014-06R1 62 36 20 6
3,65 14 2898254 SD1103A-0365-014-06R1 62 36 20 6
3,7 14 2898255 SD1103A-0370-014-06R1 62 36 20 6
3,8 17 2898256 SD1103A-0380-017-06R1 66 36 24 6
3,9 17 2898257 SD1103A-0390-017-06R1 66 36 24 6
3,969 5/32 17 2898258 SD1103A-0397-017-06R1 66 36 24 6
4 17 2898259 SD1103A-0400-017-06R1 66 36 24 6
4,1 17 2898260 SD1103A-0410-017-06R1 66 36 24 6
4,2 17 2898261 SD1103A-0420-017-06R1 66 36 24 6
4,3 17 2898262 SD1103A-0430-017-06R1 66 36 24 6
4,366 11/64 17 2898263 SD1103A-0437-017-06R1 66 36 24 6
4,5 17 2898264 SD1103A-0450-017-06R1 66 36 24 6
4,6 17 2898265 SD1103A-0460-017-06R1 66 36 24 6
4,65 17 2898266 SD1103A-0465-017-06R1 66 36 24 6
4,7 17 2898267 SD1103A-0470-017-06R1 66 36 24 6
4,763 3/16 20 2898268 SD1103A-0476-020-06R1 66 36 28 6
4,8 20 2898269 SD1103A-0480-020-06R1 66 36 28 6
4,9 20 2898270 SD1103A-0490-020-06R1 66 36 28 6
5 20 2898271 SD1103A-0500-020-06R1 66 36 28 6
5,1 20 2898272 SD1103A-0510-020-06R1 66 36 28 6
5,159 13/64 20 2898273 SD1103A-0516-020-06R1 66 36 28 6
5,2 20 2898275 SD1103A-0520-020-06R1 66 36 28 6
5,3 20 2898276 SD1103A-0530-020-06R1 66 36 28 6
5,4 20 2898277 SD1103A-0540-020-06R1 66 36 28 6
5,5 20 2898278 SD1103A-0550-020-06R1 66 36 28 6
5,55 20 2898279 SD1103A-0555-020-06R1 66 36 28 6
5,556 7/32 20 2898280 SD1103A-0556-020-06R1 66 36 28 6
5,6 20 2898281 SD1103A-0560-020-06R1 66 36 28 6
5,7 20 2898282 SD1103A-0570-020-06R1 66 36 28 6
5,8 20 2898283 SD1103A-0580-020-06R1 66 36 28 6
5,9 20 2898284 SD1103A-0590-020-06R1 66 36 28 6
5,953 20 2898285 SD1103A-0595-020-06R1 66 36 28 6
6 20 2898286 SD1103A-0600-020-06R1 66 36 28 6
6,1 24 2898287 SD1103A-0610-024-08R1 79 36 34 8
6,2 24 2898288 SD1103A-0620-024-08R1 79 36 34 8
6,3 24 2898289 SD1103A-0630-024-08R1 79 36 34 8
6,35 1/4 24 2898290 SD1103A-0635-024-08R1 79 36 34 8
6,4 24 2898291 SD1103A-0640-024-08R1 79 36 34 8
6,5 24 2898292 SD1103A-0650-024-08R1 79 36 34 8
6,6 24 2898293 SD1103A-0660-024-08R1 79 36 34 8
6,7 24 2898294 SD1103A-0670-024-08R1 79 36 34 8
6,747 17/64 24 2898295 SD1103A-0675-024-08R1 79 36 34 8
6,8 24 2898296 SD1103A-0680-024-08R1 79 36 34 8
6,9 24 2898297 SD1103A-0690-024-08R1 79 36 34 8
7 24 2898298 SD1103A-0700-024-08R1 79 36 34 8
7,1 29 2898299 SD1103A-0710-029-08R1 79 36 41 8
7,144 9/32 29 2898300 SD1103A-0714-029-08R1 79 36 41 8
7,2 29 2898301 SD1103A-0720-029-08R1 79 36 41 8
7,3 29 2898302 SD1103A-0730-029-08R1 79 36 41 8
7,4 29 2898303 SD1103A-0740-029-08R1 79 36 41 8
7,5 29 2898304 SD1103A-0750-029-08R1 79 36 41 8
7,541 19/64 29 2898305 SD1103A-0754-029-08R1 79 36 41 8
7,55 29 2898306 SD1103A-0755-029-08R1 79 36 41 8
7,6 29 2898307 SD1103A-0760-029-08R1 79 36 41 8
7,7 29 2898308 SD1103A-0770-029-08R1 79 36 41 8
7,8 29 2898309 SD1103A-0780-029-08R1 79 36 41 8
7,9 29 2898310 SD1103A-0790-029-08R1 79 36 41 8
7,938 5/16 29 2898311 SD1103A-0794-029-08R1 79 36 41 8
8 29 2898312 SD1103A-0800-029-08R1 79 36 41 8
8,1 35 2898313 SD1103A-0810-035-10R1 89 40 47 10
8,2 35 2898314 SD1103A-0820-035-10R1 89 40 47 10
8,3 35 2898315 SD1103A-0830-035-10R1 89 40 47 10
8,334 21/64 35 2898316 SD1103A-0833-035-10R1 89 40 47 10
8,4 35 2898317 SD1103A-0840-035-10R1 89 40 47 10
8,5 35 2898318 SD1103A-0850-035-10R1 89 40 47 10
8,6 35 2898319 SD1103A-0860-035-10R1 89 40 47 10
8,7 35 2898320 SD1103A-0870-035-10R1 89 40 47 10
8,731 11/32 35 2898321 SD1103A-0873-035-10R1 89 40 47 10
8,8 35 2898322 SD1103A-0880-035-10R1 89 40 47 10
8,9 35 2898323 SD1103A-0890-035-10R1 89 40 47 10
9 35 2898324 SD1103A-0900-035-10R1 89 40 47 10
9,1 35 2898325 SD1103A-0910-035-10R1 89 40 47 10
9,128 23/64 35 2898326 SD1103A-0913-035-10R1 89 40 47 10
9,2 35 2898327 SD1103A-0920-035-10R1 89 40 47 10
9,3 35 2898328 SD1103A-0930-035-10R1 89 40 47 10
9,4 35 2898329 SD1103A-0940-035-10R1 89 40 47 10
9,5 35 2898330 SD1103A-0950-035-10R1 89 40 47 10
9,525 3/8 35 2898331 SD1103A-0953-035-10R1 89 40 47 10
9,55 35 2898332 SD1103A-0955-035-10R1 89 40 47 10
9,6 35 2898333 SD1103A-0960-035-10R1 89 40 47 10
9,7 35 2898334 SD1103A-0970-035-10R1 89 40 47 10
9,8 35 2898335 SD1103A-0980-035-10R1 89 40 47 10
9,9 35 2898336 SD1103A-0990-035-10R1 89 40 47 10
9,922 25/64 35 2898337 SD1103A-0992-035-10R1 89 40 47 10
10 35 2898338 SD1103A-1000-035-10R1 89 40 47 10
10,2 40 2898339 SD1103A-1020-040-12R1 102 45 55 12
10,319 13/32 40 2898340 SD1103A-1032-040-12R1 102 45 55 12
10,4 40 2898341 SD1103A-1040-040-12R1 102 45 55 12
10,5 40 2898342 SD1103A-1050-040-12R1 102 45 55 12
10,6 40 2898343 SD1103A-1060-040-12R1 102 45 55 12
10,716 27/64 40 2898344 SD1103A-1072-040-12R1 102 45 55 12
10,8 40 2898345 SD1103A-1080-040-12R1 102 45 55 12
10,9 40 2898346 SD1103A-1090-040-12R1 102 45 55 12
11 40 2898347 SD1103A-1100-040-12R1 102 45 55 12
11,1 40 2898348 SD1103A-1110-040-12R1 102 45 55 12
11,113 7/16 40 2898349 SD1103A-1111-040-12R1 102 45 55 12
11,2 40 2898350 SD1103A-1120-040-12R1 102 45 55 12
11,3 40 2898351 SD1103A-1130-040-12R1 102 45 55 12
11,4 40 2898352 SD1103A-1140-040-12R1 102 45 55 12
11,5 40 2898353 SD1103A-1150-040-12R1 102 45 55 12
11,509 29/64 40 2898354 SD1103A-1151-040-12R1 102 45 55 12
11,55 40 2898355 SD1103A-1155-040-12R1 102 45 55 12
11,6 40 2898356 SD1103A-1160-040-12R1 102 45 55 12
11,7 40 2898357 SD1103A-1170-040-12R1 102 45 55 12
11,8 40 2898358 SD1103A-1180-040-12R1 102 45 55 12
11,9 40 2898359 SD1103A-1190-040-12R1 102 45 55 12
11,906 15/32 40 2898360 SD1103A-1191-040-12R1 102 45 55 12
12 40 2898361 SD1103A-1200-040-12R1 102 45 55 12
12,1 43 2898362 SD1103A-1210-043-14R1 107 45 60 14
12,2 43 2898363 SD1103A-1220-043-14R1 107 45 60 14
12,303 31/64 43 2898364 SD1103A-1230-043-14R1 107 45 60 14
12,4 43 2898365 SD1103A-1240-043-14R1 107 45 60 14
12,5 43 2898366 SD1103A-1250-043-14R1 107 45 60 14
12,6 43 2898367 SD1103A-1260-043-14R1 107 45 60 14
12,7 1/2 43 2898368 SD1103A-1270-043-14R1 107 45 60 14
12,75 43 2898369 SD1103A-1275-043-14R1 107 45 60 14
12,8 43 2898370 SD1103A-1280-043-14R1 107 45 60 14
12,9 43 2898371 SD1103A-1290-043-14R1 107 45 60 14
13 43 2898372 SD1103A-1300-043-14R1 107 45 60 14
13,1 43 2898373 SD1103A-1310-043-14R1 107 45 60 14
13,2 43 2898374 SD1103A-1320-043-14R1 107 45 60 14
13,3 43 2898375 SD1103A-1330-043-14R1 107 45 60 14
13,4 43 2898376 SD1103A-1340-043-14R1 107 45 60 14
13,494 17/32 43 2898377 SD1103A-1349-043-14R1 107 45 60 14
13,5 43 2898378 SD1103A-1350-043-14R1 107 45 60 14
13,6 43 2898379 SD1103A-1360-043-14R1 107 45 60 14
13,7 43 2898380 SD1103A-1370-043-14R1 107 45 60 14
13,8 43 2898381 SD1103A-1380-043-14R1 107 45 60 14
13,9 43 2898382 SD1103A-1390-043-14R1 107 45 60 14
14 43 2898383 SD1103A-1400-043-14R1 107 45 60 14
14,2 45 2898384 SD1103A-1420-045-16R1 115 48 65 16
14,288 9/16 45 2898385 SD1103A-1429-045-16R1 115 48 65 16
14,5 45 2898386 SD1103A-1450-045-16R1 115 48 65 16
14,7 45 2898387 SD1103A-1470-045-16R1 115 48 65 16
14,75 45 2898388 SD1103A-1475-045-16R1 115 48 65 16
14,8 45 2898389 SD1103A-1480-045-16R1 115 48 65 16
15 45 2898390 SD1103A-1500-045-16R1 115 48 65 16
15,1 45 2898391 SD1103A-1510-045-16R1 115 48 65 16
15,3 45 2898392 SD1103A-1530-045-16R1 115 48 65 16
15,5 45 2898393 SD1103A-1550-045-16R1 115 48 65 16
15,7 45 2898394 SD1103A-1570-045-16R1 115 48 65 16
15,8 45 2898395 SD1103A-1580-045-16R1 115 48 65 16
15,875 5/8 45 2898396 SD1103A-1588-045-16R1 115 48 65 16
16 45 2898397 SD1103A-1600-045-16R1 115 48 65 16
16,5 51 2898398 SD1103A-1650-051-18R1 123 48 73 18
17 51 2898399 SD1103A-1700-051-18R1 123 48 73 18
17,5 51 2898400 SD1103A-1750-051-18R1 123 48 73 18
18 51 2898401 SD1103A-1800-051-18R1 123 48 73 18
18,5 55 2898402 SD1103A-1850-055-20R1 131 50 79 20
19 55 2898403 SD1103A-1900-055-20R1 131 50 79 20
19,05 3/4 55 2898404 SD1103A-1905-055-20R1 131 50 79 20
19,5 55 2898405 SD1103A-1950-055-20R1 131 50 79 20
20 55 2898406 SD1103A-2000-055-20R1 131 50 79 20
Seco Universal – SD1105A
3 23 2897845 SD1105A-0300-023-06R1 66 36 28 6
3,1 23 2897846 SD1105A-0310-023-06R1 66 36 28 6
3,175 1/8 23 2897847 SD1105A-0318-023-06R1 66 36 28 6
3,2 23 2897848 SD1105A-0320-023-06R1 66 36 28 6
3,25 23 2897849 SD1105A-0325-023-06R1 66 36 28 6
3,3 23 2897850 SD1105A-0330-023-06R1 66 36 28 6
3,4 23 2897851 SD1105A-0340-023-06R1 66 36 28 6
3,5 23 2897852 SD1105A-0350-023-06R1 66 36 28 6
3,572 9/64 23 2897853 SD1105A-0357-023-06R1 66 36 28 6
3,6 23 2897854 SD1105A-0360-023-06R1 66 36 28 6
3,65 23 2897855 SD1105A-0365-023-06R1 66 36 28 6
3,7 23 2897856 SD1105A-0370-023-06R1 66 36 28 6
3,8 29 2897857 SD1105A-0380-029-06R1 74 36 36 6
3,9 29 2897858 SD1105A-0390-029-06R1 74 36 36 6
3,969 5/32 29 2897859 SD1105A-0397-029-06R1 74 36 36 6
4 29 2897860 SD1105A-0400-029-06R1 74 36 36 6
4,1 29 2897861 SD1105A-0410-029-06R1 74 36 36 6
4,2 29 2897862 SD1105A-0420-029-06R1 74 36 36 6
4,3 29 2897863 SD1105A-0430-029-06R1 74 36 36 6
4,366 11/64 29 2897864 SD1105A-0437-029-06R1 74 36 36 6
4,4 29 2897865 SD1105A-0440-029-06R1 74 36 36 6
4,5 29 2897866 SD1105A-0450-029-06R1 74 36 36 6
4,6 29 2897867 SD1105A-0460-029-06R1 74 36 36 6
4,65 29 2897868 SD1105A-0465-029-06R1 74 36 36 6
4,7 29 2897869 SD1105A-0470-029-06R1 74 36 36 6
4,763 3/16 35 2897870 SD1105A-0476-035-06R1 82 36 44 6
4,8 35 2897871 SD1105A-0480-035-06R1 82 36 44 6
4,9 35 2897872 SD1105A-0490-035-06R1 82 36 44 6
5 35 2897873 SD1105A-0500-035-06R1 82 36 44 6
5,1 35 2897874 SD1105A-0510-035-06R1 82 36 44 6
5,159 13/64 35 2897875 SD1105A-0516-035-06R1 82 36 44 6
5,2 35 2897876 SD1105A-0520-035-06R1 82 36 44 6
5,3 35 2897877 SD1105A-0530-035-06R1 82 36 44 6
5,4 35 2897878 SD1105A-0540-035-06R1 82 36 44 6
5,5 35 2897879 SD1105A-0550-035-06R1 82 36 44 6
5,55 35 2897880 SD1105A-0555-035-06R1 82 36 44 6
5,556 7/32 35 2897881 SD1105A-0556-035-06R1 82 36 44 6
5,6 35 2897882 SD1105A-0560-035-06R1 82 36 44 6
5,7 35 2897883 SD1105A-0570-035-06R1 82 36 44 6
5,8 35 2897884 SD1105A-0580-035-06R1 82 36 44 6
5,9 35 2897885 SD1105A-0590-035-06R1 82 36 44 6
5,953 15/64 35 2897886 SD1105A-0595-035-06R1 82 36 44 6
6 35 2897887 SD1105A-0600-035-06R1 82 36 44 6
6,1 43 2897888 SD1105A-0610-043-08R1 91 36 53 8
6,2 43 2897889 SD1105A-0620-043-08R1 91 36 53 8
6,3 43 2897890 SD1105A-0630-043-08R1 91 36 53 8
6,35 1/4 43 2897891 SD1105A-0635-043-08R1 91 36 53 8
6,4 43 2897892 SD1105A-0640-043-08R1 91 36 53 8
6,5 43 2897893 SD1105A-0650-043-08R1 91 36 53 8
6,6 43 2897894 SD1105A-0660-043-08R1 91 36 53 8
6,7 43 2897895 SD1105A-0670-043-08R1 91 36 53 8
6,747 17/64 43 2897896 SD1105A-0675-043-08R1 91 36 53 8
6,8 43 2897897 SD1105A-0680-043-08R1 91 36 53 8
6,9 43 2897898 SD1105A-0690-043-08R1 91 36 53 8
7 43 2897899 SD1105A-0700-043-08R1 91 36 53 8
7,1 43 2897900 SD1105A-0710-043-08R1 91 36 53 8
7,144 9/32 43 2897901 SD1105A-0714-043-08R1 91 36 53 8
7,2 43 2897902 SD1105A-0720-043-08R1 91 36 53 8
7,3 43 2897903 SD1105A-0730-043-08R1 91 36 53 8
7,4 43 2897904 SD1105A-0740-043-08R1 91 36 53 8
7,5 43 2897905 SD1105A-0750-043-08R1 91 36 53 8
7,541 19/64 43 2897906 SD1105A-0754-043-08R1 91 36 53 8
7,55 43 2897907 SD1105A-0755-043-08R1 91 36 53 8
7,6 43 2897908 SD1105A-0760-043-08R1 91 36 53 8
7,7 43 2897909 SD1105A-0770-043-08R1 91 36 53 8
7,8 43 2897910 SD1105A-0780-043-08R1 91 36 53 8
7,9 43 2897911 SD1105A-0790-043-08R1 91 36 53 8
7,938 5/16 43 2897912 SD1105A-0794-043-08R1 91 36 53 8
8 43 2897913 SD1105A-0800-043-08R1 91 36 53 8
8,1 49 2897914 SD1105A-0810-049-10R1 103 40 61 10
8,2 49 2897915 SD1105A-0820-049-10R1 103 40 61 10
8,3 49 2897916 SD1105A-0830-049-10R1 103 40 61 10
8,334 21/64 49 2897917 SD1105A-0833-049-10R1 103 40 61 10
8,4 49 2897918 SD1105A-0840-049-10R1 103 40 61 10
8,5 49 2897919 SD1105A-0850-049-10R1 103 40 61 10
8,6 49 2897920 SD1105A-0860-049-10R1 103 40 61 10
8,7 49 2897921 SD1105A-0870-049-10R1 103 40 61 10
8,731 11/32 49 2897922 SD1105A-0873-049-10R1 103 40 61 10
8,8 49 2897923 SD1105A-0880-049-10R1 103 40 61 10
8,9 49 2897924 SD1105A-0890-049-10R1 103 40 61 10
9 49 2897925 SD1105A-0900-049-10R1 103 40 61 10
9,1 49 2897926 SD1105A-0910-049-10R1 103 40 61 10
9,128 23/64 49 2897927 SD1105A-0913-049-10R1 103 40 61 10
9,2 49 2897928 SD1105A-0920-049-10R1 103 40 61 10
9,300 49 2897929 SD1105A-0930-049-10R1 103 40 61 10
9,400 49 2897930 SD1105A-0940-049-10R1 103 40 61 10
9,500 49 2897931 SD1105A-0950-049-10R1 103 40 61 10
9,525 3/8 49 2897932 SD1105A-0953-049-10R1 103 40 61 10
9,550 49 2897933 SD1105A-0955-049-10R1 103 40 61 10
9,600 49 2897934 SD1105A-0960-049-10R1 103 40 61 10
9,700 49 2897935 SD1105A-0970-049-10R1 103 40 61 10
9,800 49 2897936 SD1105A-0980-049-10R1 103 40 61 10
9,900 49 2897937 SD1105A-0990-049-10R1 103 40 61 10
9,922 25/64 49 2897938 SD1105A-0992-049-10R1 103 40 61 10
10,000 49 2897939 SD1105A-1000-049-10R1 103 40 61 10
10,100 56 2897940 SD1105A-1010-056-12R1 118 45 71 12
10,200 56 2897941 SD1105A-1020-056-12R1 118 45 71 12
10,300 56 2897942 SD1105A-1030-056-12R1 118 45 71 12
10,319 13/32 56 2897943 SD1105A-1032-056-12R1 118 45 71 12
10,400 56 2897944 SD1105A-1040-056-12R1 118 45 71 12
10,500 56 2897945 SD1105A-1050-056-12R1 118 45 71 12
10,600 56 2897946 SD1105A-1060-056-12R1 118 45 71 12
10,700 56 2897947 SD1105A-1070-056-12R1 118 45 71 12
10,716 27/64 56 2897948 SD1105A-1072-056-12R1 118 45 71 12
10,800 56 2897949 SD1105A-1080-056-12R1 118 45 71 12
10,900 56 2897951 SD1105A-1090-056-12R1 118 45 71 12
11,000 56 2897952 SD1105A-1100-056-12R1 118 45 71 12
11,100 56 2897953 SD1105A-1110-056-12R1 118 45 71 12
11,113 7/16 56 2897954 SD1105A-1111-056-12R1 118 45 71 12
11,200 56 2897955 SD1105A-1120-056-12R1 118 45 71 12
11,300 56 2897956 SD1105A-1130-056-12R1 118 45 71 12
11,400 56 2897957 SD1105A-1140-056-12R1 118 45 71 12
11,500 56 2897958 SD1105A-1150-056-12R1 118 45 71 12
11,509 29/64 56 2897959 SD1105A-1151-056-12R1 118 45 71 12
11,550 56 2897960 SD1105A-1155-056-12R1 118 45 71 12
11,600 56 2897961 SD1105A-1160-056-12R1 118 45 71 12
11,700 56 2897962 SD1105A-1170-056-12R1 118 45 71 12
11,800 56 2897963 SD1105A-1180-056-12R1 118 45 71 12
11,900 56 2897964 SD1105A-1190-056-12R1 118 45 71 12
11,906 15/32 56 2897965 SD1105A-1191-056-12R1 118 45 71 12
12,000 56 2897966 SD1105A-1200-056-12R1 118 45 71 12
12,100 60 2897967 SD1105A-1210-060-14R1 124 45 77 14
12,200 60 2897968 SD1105A-1220-060-14R1 124 45 77 14
12,250 60 2897969 SD1105A-1225-060-14R1 124 45 77 14
12,303 31/64 60 2897970 SD1105A-1230-060-14R1 124 45 77 14
12,400 60 2897972 SD1105A-1240-060-14R1 124 45 77 14
12,500 60 2897973 SD1105A-1250-060-14R1 124 45 77 14
12,600 60 2897974 SD1105A-1260-060-14R1 124 45 77 14
12,700 1/2 60 2897950 SD1105A-1270-060-14R1 124 45 77 14
12,750 60 2897976 SD1105A-1275-060-14R1 124 45 77 14
12,800 60 2897977 SD1105A-1280-060-14R1 124 45 77 14
12,900 60 2897978 SD1105A-1290-060-14R1 124 45 77 14
13,000 60 2897979 SD1105A-1300-060-14R1 124 45 77 14
13,100 60 2897980 SD1105A-1310-060-14R1 124 45 77 14
13,200 60 2897981 SD1105A-1320-060-14R1 124 45 77 14
13,300 60 2897982 SD1105A-1330-060-14R1 124 45 77 14
13,400 60 2897983 SD1105A-1340-060-14R1 124 45 77 14
13,494 17/32 60 2897984 SD1105A-1349-060-14R1 124 45 77 14
13,500 60 2897985 SD1105A-1350-060-14R1 124 45 77 14
13,600 60 2897986 SD1105A-1360-060-14R1 124 45 77 14
13,700 60 2897987 SD1105A-1370-060-14R1 124 45 77 14
13,800 60 2897988 SD1105A-1380-060-14R1 124 45 77 14
13,900 60 2897989 SD1105A-1390-060-14R1 124 45 77 14
14,000 60 2897990 SD1105A-1400-060-14R1 124 45 77 14
14,100 63 2897991 SD1105A-1410-063-16R1 133 48 83 16
14,200 63 2897992 SD1105A-1420-063-16R1 133 48 83 16
14,288 9/16 63 2897993 SD1105A-1429-063-16R1 133 48 83 16
14,300 63 2897994 SD1105A-1430-063-16R1 133 48 83 16
14,400 63 2897995 SD1105A-1440-063-16R1 133 48 83 16
14,500 63 2897996 SD1105A-1450-063-16R1 133 48 83 16
14,600 63 2897997 SD1105A-1460-063-16R1 133 48 83 16
14,700 63 2897998 SD1105A-1470-063-16R1 133 48 83 16
14,750 63 2897999 SD1105A-1475-063-16R1 133 48 83 16
14,800 63 2898000 SD1105A-1480-063-16R1 133 48 83 16
14,900 63 2898001 SD1105A-1490-063-16R1 133 48 83 16
15,000 63 2898002 SD1105A-1500-063-16R1 133 48 83 16
15,100 63 2898003 SD1105A-1510-063-16R1 133 48 83 16
15,200 63 2898004 SD1105A-1520-063-16R1 133 48 83 16
15,300 63 2898005 SD1105A-1530-063-16R1 133 48 83 16
15,400 63 2898006 SD1105A-1540-063-16R1 133 48 83 16
15,500 63 2898007 SD1105A-1550-063-16R1 133 48 83 16
15,600 63 2898008 SD1105A-1560-063-16R1 133 48 83 16
15,700 63 2898009 SD1105A-1570-063-16R1 133 48 83 16
15,800 63 2898010 SD1105A-1580-063-16R1 133 48 83 16
15,875 5/8 63 2898011 SD1105A-1588-063-16R1 133 48 83 16
15,900 63 2898012 SD1105A-1590-063-16R1 133 48 83 16
16,000 63 2898013 SD1105A-1600-063-16R1 133 48 83 16
16,100 71 2898014 SD1105A-1610-071-18R1 143 48 93 18
16,200 71 2898015 SD1105A-1620-071-18R1 143 48 93 18
16,300 71 2898016 SD1105A-1630-071-18R1 143 48 93 18
16,400 71 2898017 SD1105A-1640-071-18R1 143 48 93 18
16,500 71 2898018 SD1105A-1650-071-18R1 143 48 93 18
16,600 71 2898019 SD1105A-1660-071-18R1 143 48 93 18
16,700 71 2898020 SD1105A-1670-071-18R1 143 48 93 18
16,750 71 2898021 SD1105A-1675-071-18R1 143 48 93 18
16,800 71 2898022 SD1105A-1680-071-18R1 143 48 93 18
16,900 71 2898023 SD1105A-1690-071-18R1 143 48 93 18
17,000 71 2898024 SD1105A-1700-071-18R1 143 48 93 18
17,100 71 2898025 SD1105A-1710-071-18R1 143 48 93 18
17,200 71 2898026 SD1105A-1720-071-18R1 143 48 93 18
17,300 71 2898027 SD1105A-1730-071-18R1 143 48 93 18
17,400 71 2898028 SD1105A-1740-071-18R1 143 48 93 18
17,500 71 2898029 SD1105A-1750-071-18R1 143 48 93 18
17,600 71 2898030 SD1105A-1760-071-18R1 143 48 93 18
17,700 71 2898031 SD1105A-1770-071-18R1 143 48 93 18
17,800 71 2898032 SD1105A-1780-071-18R1 143 48 93 18
17,900 71 2898033 SD1105A-1790-071-18R1 143 48 93 18
18,000 71 2898034 SD1105A-1800-071-18R1 143 48 93 18
18,100 77 2898035 SD1105A-1810-077-20R1 153 50 101 20
18,200 77 2898036 SD1105A-1820-077-20R1 153 50 101 20
18,300 77 2898037 SD1105A-1830-077-20R1 153 50 101 20
18,400 77 2898038 SD1105A-1840-077-20R1 153 50 101 20
18,500 77 2898039 SD1105A-1850-077-20R1 153 50 101 20
18,600 77 2898040 SD1105A-1860-077-20R1 153 50 101 20
18,700 77 2898041 SD1105A-1870-077-20R1 153 50 101 20
18,800 77 2898042 SD1105A-1880-077-20R1 153 50 101 20
18,900 77 2898043 SD1105A-1890-077-20R1 153 50 101 20
19,000 77 2898044 SD1105A-1900-077-20R1 153 50 101 20
19,050 3/4 77 2898045 SD1105A-1905-077-20R1 153 50 101 20
19,100 77 2898046 SD1105A-1910-077-20R1 153 50 101 20
19,200 77 2898047 SD1105A-1920-077-20R1 153 50 101 20
19,300 77 2898048 SD1105A-1930-077-20R1 153 50 101 20
19,400 77 2898049 SD1105A-1940-077-20R1 153 50 101 20
19,500 77 2898050 SD1105A-1950-077-20R1 153 50 101 20
19,600 77 2898051 SD1105A-1960-077-20R1 153 50 101 20
19,700 77 2898052 SD1105A-1970-077-20R1 153 50 101 20
19,800 77 2898053 SD1105A-1980-077-20R1 153 50 101 20
19,900 77 2898054 SD1105A-1990-077-20R1 153 50 101 20
20,000 77 2898055 SD1105A-2000-077-20R1 153 50 101 20
 Seco Feedmax™ – SD203A – P
17 51 3046054 SD203A-1700-051-18R1-P 123 48 73 18
17,5 51 3046055 SD203A-1750-051-18R1-P 123 48 73 18
18 51 3046056 SD203A-1800-051-18R1-P 123 48 73 18
18,5 55 3046057 SD203A-1850-055-20R1-P 131 50 79 20
19 55 3046058 SD203A-1900-055-20R1-P 131 50 79 20
19,05 55 3046089 SD203A-1905-055-20R1-P 131 50 79 20
19,5 55 3046059 SD203A-1950-055-20R1-P 131 50 79 20
19,8 55 3138156 SD203A-1980-055-20R1-P 131 50 79 20
20 55 3046060 SD203A-2000-055-20R1-P 131 50 79 20
Seco Feedmax™ – SD205A – P
2 12 3046131 SD205A-0200-012-04R1-P 46 27 15 4
2,1 12 3046132 SD205A-0210-012-04R1-P 46 27 15 4
2,2 12 3046133 SD205A-0220-012-04R1-P 46 27 15 4
2,3 12 3046134 SD205A-0230-012-04R1-P 46 27 15 4
2,381 13 3120477 SD205A-0238-013-04R1-P 50 27 18 4
2,4 13 3046135 SD205A-0240-013-04R1-P 50 27 18 4
2,5 13 3046136 SD205A-0250-013-04R1-P 50 27 18 4
2,6 13 3046137 SD205A-0260-013-04R1-P 50 27 18 4
2,7 15 3046138 SD205A-0270-015-04R1-P 50 27 21 4
2,778 15 3120496 SD205A-0278-015-04R1-P 50 27 21 4
2,8 15 3046139 SD205A-0280-015-04R1-P 50 27 21 4
2,9 15 3046141 SD205A-0290-015-04R1-P 50 27 21 4
3 23 3046142 SD205A-0300-023-06R1-P 66 36 26 6
3,1 23 3046143 SD205A-0310-023-06R1-P 66 36 26 6
3,175 23 3046327 SD205A-0318-023-06R1-P 66 36 26 6
3,2 23 3046144 SD205A-0320-023-06R1-P 66 36 26 6
3,25 23 3046145 SD205A-0325-023-06R1-P 66 36 26 6
3,3 23 3046146 SD205A-0330-023-06R1-P 66 36 26 6
3,4 23 3046147 SD205A-0340-023-06R1-P 66 36 26 6
3,5 23 3046148 SD205A-0350-023-06R1-P 66 36 26 6
3,572 23 3046328 SD205A-0357-023-06R1-P 66 36 26 6
3,6 23 3046149 SD205A-0360-023-06R1-P 66 36 26 6
3,65 23 3046150 SD205A-0365-023-06R1-P 66 36 26 6
3,7 23 3046151 SD205A-0370-023-06R1-P 66 36 26 6
3,8 29 3046152 SD205A-0380-029-06R1-P 74 36 34 6
3,9 29 3046153 SD205A-0390-029-06R1-P 74 36 34 6
3,97 29 3046329 SD205A-0397-029-06R1-P 74 36 34 6
4 29 3046154 SD205A-0400-029-06R1-P 74 36 34 6
4,1 29 3046155 SD205A-0410-029-06R1-P 74 36 34 6
4,2 29 3046157 SD205A-0420-029-06R1-P 74 36 34 6
4,3 29 3046158 SD205A-0430-029-06R1-P 74 36 34 6
4,366 29 3046330 SD205A-0437-029-06R1-P 74 36 34 6
4,4 29 3046159 SD205A-0440-029-06R1-P 74 36 34 6
4,5 29 3046160 SD205A-0450-029-06R1-P 74 36 34 6
4,6 29 3046161 SD205A-0460-029-06R1-P 74 36 34 6
4,65 29 3046162 SD205A-0465-029-06R1-P 74 36 34 6
4,7 29 3046163 SD205A-0470-029-06R1-P 74 36 34 6
4,763 35 3046331 SD205A-0476-035-06R1-P 82 36 44 6
4,8 35 3046164 SD205A-0480-035-06R1-P 82 36 44 6
4,9 35 3046165 SD205A-0490-035-06R1-P 82 36 44 6
5 35 3046166 SD205A-0500-035-06R1-P 82 36 44 6
5,1 35 3046167 SD205A-0510-035-06R1-P 82 36 44 6
5,159 35 3046332 SD205A-0516-035-06R1-P 82 36 44 6
5,2 35 3046168 SD205A-0520-035-06R1-P 82 36 44 6
5,3 35 3046169 SD205A-0530-035-06R1-P 82 36 44 6
5,4 35 3046170 SD205A-0540-035-06R1-P 82 36 44 6
5,5 35 3046171 SD205A-0550-035-06R1-P 82 36 44 6
5,55 35 3046172 SD205A-0555-035-06R1-P 82 36 44 6
5,556 35 3046333 SD205A-0556-035-06R1-P 82 36 44 6
5,6 35 3046173 SD205A-0560-035-06R1-P 82 36 44 6
5,7 35 3046174 SD205A-0570-035-06R1-P 82 36 44 6
5,8 35 3046175 SD205A-0580-035-06R1-P 82 36 44 6
5,9 35 3046176 SD205A-0590-035-06R1-P 82 36 44 6
5,953 35 3046334 SD205A-0595-035-06R1-P 82 36 44 6
6 35 3046177 SD205A-0600-035-06R1-P 82 36 44 6
6,1 43 3046179 SD205A-0610-043-08R1-P 91 36 53 8
6,2 43 3046180 SD205A-0620-043-08R1-P 91 36 53 8
6,3 43 3046181 SD205A-0630-043-08R1-P 91 36 53 8
6,35 43 3046335 SD205A-0635-043-08R1-P 91 36 53 8
6,4 43 3046182 SD205A-0640-043-08R1-P 91 36 53 8
6,5 43 3046183 SD205A-0650-043-08R1-P 91 36 53 8
6,6 43 3046184 SD205A-0660-043-08R1-P 91 36 53 8
6,7 43 3046185 SD205A-0670-043-08R1-P 91 36 53 8
6,747 43 3046336 SD205A-0675-043-08R1-P 91 36 53 8
6,8 43 3046186 SD205A-0680-043-08R1-P 91 36 53 8
6,9 43 3046187 SD205A-0690-043-08R1-P 91 36 53 8
7 43 3046188 SD205A-0700-043-08R1-P 91 36 53 8
7,1 43 3046190 SD205A-0710-043-08R1-P 91 36 53 8
7,144 43 3046337 SD205A-0714-043-08R1-P 91 36 53 8
7,2 43 3046191 SD205A-0720-043-08R1-P 91 36 53 8
7,3 43 3046192 SD205A-0730-043-08R1-P 91 36 53 8
7,4 43 3046193 SD205A-0740-043-08R1-P 91 36 53 8
7,5 43 3046194 SD205A-0750-043-08R1-P 91 36 53 8
7,541 43 3046338 SD205A-0754-043-08R1-P 91 36 53 8
7,55 43 3046195 SD205A-0755-043-08R1-P 91 36 53 8
7,6 43 3046196 SD205A-0760-043-08R1-P 91 36 53 8
7,7 43 3046197 SD205A-0770-043-08R1-P 91 36 53 8
7,8 43 3046198 SD205A-0780-043-08R1-P 91 36 53 8
7,9 43 3046199 SD205A-0790-043-08R1-P 91 36 53 8
7,938 43 3046339 SD205A-0794-043-08R1-P 91 36 53 8
8 43 3046200 SD205A-0800-043-08R1-P 91 36 53 8
8,1 49 3046201 SD205A-0810-049-10R1-P 103 40 61 10
8,2 49 3046202 SD205A-0820-049-10R1-P 103 40 61 10
8,3 49 3046203 SD205A-0830-049-10R1-P 103 40 61 10
8,334 49 3046340 SD205A-0833-049-10R1-P 103 40 61 10
8,4 49 3046204 SD205A-0840-049-10R1-P 103 40 61 10
8,5 49 3046205 SD205A-0850-049-10R1-P 103 40 61 10
8,6 49 3046206 SD205A-0860-049-10R1-P 103 40 61 10
8,7 49 3046207 SD205A-0870-049-10R1-P 103 40 61 10
8,731 49 3046341 SD205A-0873-049-10R1-P 103 40 61 10
8,8 49 3046208 SD205A-0880-049-10R1-P 103 40 61 10
8,9 49 3046209 SD205A-0890-049-10R1-P 103 40 61 10
9 49 3046210 SD205A-0900-049-10R1-P 103 40 61 10
9,1 49 3046211 SD205A-0910-049-10R1-P 103 40 61 10
9,128 49 3046342 SD205A-0913-049-10R1-P 103 40 61 10
9,2 49 3046212 SD205A-0920-049-10R1-P 103 40 61 10
9,3 49 3046213 SD205A-0930-049-10R1-P 103 40 61 10
9,4 49 3046214 SD205A-0940-049-10R1-P 103 40 61 10
9,5 49 3046215 SD205A-0950-049-10R1-P 103 40 61 10
9,525 49 3046343 SD205A-0953-049-10R1-P 103 40 61 10
9,55 49 3046216 SD205A-0955-049-10R1-P 103 40 61 10
9,6 49 3046217 SD205A-0960-049-10R1-P 103 40 61 10
9,7 49 3046218 SD205A-0970-049-10R1-P 103 40 61 10
9,8 49 3046219 SD205A-0980-049-10R1-P 103 40 61 10
9,9 49 3046220 SD205A-0990-049-10R1-P 103 40 61 10
9,922 49 3046344 SD205A-0992-049-10R1-P 103 40 61 10
10 49 3046221 SD205A-1000-049-10R1-P 103 40 61 10
10,1 56 3046222 SD205A-1010-056-12R1-P 118 45 71 12
10,2 56 3046223 SD205A-1020-056-12R1-P 118 45 71 12
10,3 56 3046224 SD205A-1030-056-12R1-P 118 45 71 12
10,319 56 3046345 SD205A-1032-056-12R1-P 118 45 71 12
10,4 56 3046225 SD205A-1040-056-12R1-P 118 45 71 12
10,5 56 3046226 SD205A-1050-056-12R1-P 118 45 71 12
10,6 56 3046227 SD205A-1060-056-12R1-P 118 45 71 12
10,7 56 3046228 SD205A-1070-056-12R1-P 118 45 71 12
10,716 56 3046346 SD205A-1072-056-12R1-P 118 45 71 12
10,8 56 3046229 SD205A-1080-056-12R1-P 118 45 71 12
10,9 56 3046230 SD205A-1090-056-12R1-P 118 45 71 12
11 56 3046231 SD205A-1100-056-12R1-P 118 45 71 12
11,1 56 3046232 SD205A-1110-056-12R1-P 118 45 71 12
11,113 56 3046347 SD205A-1111-056-12R1-P 118 45 71 12
11,2 56 3046233 SD205A-1120-056-12R1-P 118 45 71 12
11,3 56 3046234 SD205A-1130-056-12R1-P 118 45 71 12
11,4 56 3046235 SD205A-1140-056-12R1-P 118 45 71 12
11,5 56 3046236 SD205A-1150-056-12R1-P 118 45 71 12
11,509 56 3046348 SD205A-1151-056-12R1-P 118 45 71 12
11,55 56 3046237 SD205A-1155-056-12R1-P 118 45 71 12
11,6 56 3046238 SD205A-1160-056-12R1-P 118 45 71 12
11,7 56 3046239 SD205A-1170-056-12R1-P 118 45 71 12
11,8 56 3046240 SD205A-1180-056-12R1-P 118 45 71 12
11,9 56 3046241 SD205A-1190-056-12R1-P 118 45 71 12
11,906 56 3046349 SD205A-1191-056-12R1-P 118 45 71 12
12 56 3046242 SD205A-1200-056-12R1-P 118 45 71 12
12,1 60 3046243 SD205A-1210-060-14R1-P 124 45 77 14
12,2 60 3046244 SD205A-1220-060-14R1-P 124 45 77 14
12,25 60 3046245 SD205A-1225-060-14R1-P 124 45 77 14
12,3 60 3138157 SD205A-1230-060-14R1-P 124 45 77 14
12,4 60 3046246 SD205A-1240-060-14R1-P 124 45 77 14
12,5 60 3046247 SD205A-1250-060-14R1-P 124 45 77 14
12,6 60 3046248 SD205A-1260-060-14R1-P 124 45 77 14
12,7 60 3120497 SD205A-1270-060-14R1-P 124 45 77 14
12,75 60 3046249 SD205A-1275-060-14R1-P 124 45 77 14
12,8 60 3046250 SD205A-1280-060-14R1-P 124 45 77 14
12,9 60 3046251 SD205A-1290-060-14R1-P 124 45 77 14
13 60 3046252 SD205A-1300-060-14R1-P 124 45 77 14
13,1 60 3046253 SD205A-1310-060-14R1-P 124 45 77 14
13,2 60 3046254 SD205A-1320-060-14R1-P 124 45 77 14
13,3 60 3046255 SD205A-1330-060-14R1-P 124 45 77 14
13,4 60 3046256 SD205A-1340-060-14R1-P 124 45 77 14
13,494 60 3046350 SD205A-1349-060-14R1-P 124 45 77 14
13,5 60 3046257 SD205A-1350-060-14R1-P 124 45 77 14
13,55 60 3138158 SD205A-1355-060-14R1-P 124 45 77 14
13,6 60 3046258 SD205A-1360-060-14R1-P 124 45 77 14
13,7 60 3046259 SD205A-1370-060-14R1-P 124 45 77 14
13,8 60 3046260 SD205A-1380-060-14R1-P 124 45 77 14
13,891 60 3120498 SD205A-1389-060-14R1-P 124 45 77 14
13,9 60 3046261 SD205A-1390-060-14R1-P 124 45 77 14
14 60 3046262 SD205A-1400-060-14R1-P 124 45 77 14
14,1 63 3046263 SD205A-1410-063-16R1-P 133 48 83 16
14,2 63 3046264 SD205A-1420-063-16R1-P 133 48 83 16
14,25 63 3138159 SD205A-1425-063-16R1-P 133 48 83 16
14,288 63 3046351 SD205A-1429-063-16R1-P 133 48 83 16
14,3 63 3046265 SD205A-1430-063-16R1-P 133 48 83 16
14,4 63 3046266 SD205A-1440-063-16R1-P 133 48 83 16
14,5 63 3046267 SD205A-1450-063-16R1-P 133 48 83 16
14,6 63 3046268 SD205A-1460-063-16R1-P 133 48 83 16
14,7 63 3046269 SD205A-1470-063-16R1-P 133 48 83 16
14,75 63 3046270 SD205A-1475-063-16R1-P 133 48 83 16
14,8 63 3046271 SD205A-1480-063-16R1-P 133 48 83 16
14,9 63 3046272 SD205A-1490-063-16R1-P 133 48 83 16
15 63 3046273 SD205A-1500-063-16R1-P 133 48 83 16
15,1 63 3046274 SD205A-1510-063-16R1-P 133 48 83 16
15,2 63 3046275 SD205A-1520-063-16R1-P 133 48 83 16
15,25 63 3138160 SD205A-1525-063-16R1-P 133 48 83 16
15,3 63 3046276 SD205A-1530-063-16R1-P 133 48 83 16
15,4 63 3046277 SD205A-1540-063-16R1-P 133 48 83 16
15,5 63 3046278 SD205A-1550-063-16R1-P 133 48 83 16
15,6 63 3046280 SD205A-1560-063-16R1-P 133 48 83 16
15,7 63 3046281 SD205A-1570-063-16R1-P 133 48 83 16
15,8 63 3046282 SD205A-1580-063-16R1-P 133 48 83 16
15,875 63 3046352 SD205A-1588-063-16R1-P 133 48 83 16
15,9 63 3046283 SD205A-1590-063-16R1-P 133 48 83 16
16 63 3046284 SD205A-1600-063-16R1-P 133 48 83 16
16,1 71 3046285 SD205A-1610-071-18R1-P 143 48 93 18
16,2 71 3046286 SD205A-1620-071-18R1-P 143 48 93 18
16,25 71 3138161 SD205A-1625-071-18R1-P 143 48 93 18
16,3 71 3046287 SD205A-1630-071-18R1-P 143 48 93 18
16,4 71 3046288 SD205A-1640-071-18R1-P 143 48 93 18
16,5 71 3046289 SD205A-1650-071-18R1-P 143 48 93 18
16,6 71 3046290 SD205A-1660-071-18R1-P 143 48 93 18
16,669 71 3120499 SD205A-1667-071-18R1-P 143 48 93 18
16,7 71 3046291 SD205A-1670-071-18R1-P 143 48 93 18
16,75 71 3046292 SD205A-1675-071-18R1-P 143 48 93 18
16,8 71 3046293 SD205A-1680-071-18R1-P 143 48 93 18
16,9 71 3046294 SD205A-1690-071-18R1-P 143 48 93 18
17 71 3046296 SD205A-1700-071-18R1-P 143 48 93 18
17,1 71 3046297 SD205A-1710-071-18R1-P 143 48 93 18
17,2 71 3046298 SD205A-1720-071-18R1-P 143 48 93 18
17,3 71 3046299 SD205A-1730-071-18R1-P 143 48 93 18
17,4 71 3046300 SD205A-1740-071-18R1-P 143 48 93 18
17,463 71 3120500 SD205A-1746-071-18R1-P 143 48 93 18
17,5 71 3046301 SD205A-1750-071-18R1-P 143 48 93 18
17,6 71 3046302 SD205A-1760-071-18R1-P 143 48 93 18
17,7 71 3046303 SD205A-1770-071-18R1-P 143 48 93 18
17,8 71 3046304 SD205A-1780-071-18R1-P 143 48 93 18
17,9 71 3046305 SD205A-1790-071-18R1-P 143 48 93 18
18 71 3046306 SD205A-1800-071-18R1-P 143 48 93 18
18,1 77 3046307 SD205A-1810-077-20R1-P 153 50 101 20
18,2 77 3046308 SD205A-1820-077-20R1-P 153 50 101 20
18,3 77 3046309 SD205A-1830-077-20R1-P 153 50 101 20
18,4 77 3046310 SD205A-1840-077-20R1-P 153 50 101 20
18,5 77 3046311 SD205A-1850-077-20R1-P 153 50 101 20
18,6 77 3046312 SD205A-1860-077-20R1-P 153 50 101 20
18,7 77 3046313 SD205A-1870-077-20R1-P 153 50 101 20
18,8 77 3046314 SD205A-1880-077-20R1-P 153 50 101 20
18,9 77 3046315 SD205A-1890-077-20R1-P 153 50 101 20
19 77 3046316 SD205A-1900-077-20R1-P 153 50 101 20
19,05 77 3046353 SD205A-1905-077-20R1-P 153 50 101 20
19,1 77 3046317 SD205A-1910-077-20R1-P 153 50 101 20
19,2 77 3046318 SD205A-1920-077-20R1-P 153 50 101 20
19,3 77 3046319 SD205A-1930-077-20R1-P 153 50 101 20
19,4 77 3046320 SD205A-1940-077-20R1-P 153 50 101 20
19,5 77 3046321 SD205A-1950-077-20R1-P 153 50 101 20
19,6 77 3046322 SD205A-1960-077-20R1-P 153 50 101 20
19,7 77 3046323 SD205A-1970-077-20R1-P 153 50 101 20
19,8 77 3046324 SD205A-1980-077-20R1-P 153 50 101 20
19,9 77 3046325 SD205A-1990-077-20R1-P 153 50 101 20
20 77 3046326 SD205A-2000-077-20R1-P 153 50 101 20
