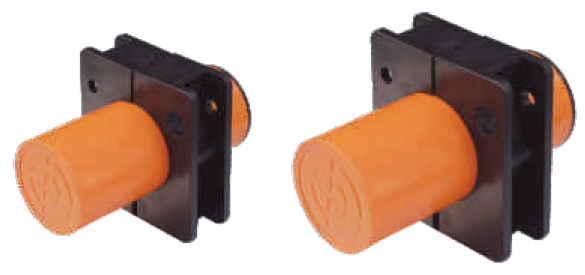

Цилиндрические индуктивные датчики Rock LQ20S / LQ34S (ø20, ø34)
Материал корпуса: пластик (ABS)
Посадочный диаметр: ø20, ø34
Класс защиты: IP67
Температура внешней среды: -25ºС..+70ºС
Стандарты: GB/T14048.10
Максимальный ток нагрузки: 200мА
Установка без резьбы
Кабель: 2м
Желтый LED индикатор
| Раб. форма | Тип | Расстояние срабатывания, mm | Питание | Выход | Защита | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-30 VDC | 20-250 VAC | NPN | PNP | NO | NC |
Частота переключения, Hz |
От короткого замыкания | От пере-полюсовки | |||
| DC 2 линии | LQ20SF07ADA | 7 | ♦ | ♦ | 800 | ♦ | ♦ | ||||
| LQ20SF07ADB | 7 | ♦ | ♦ | 800 | ♦ | ♦ | |||||
| LQ34SF15ADA | 15 | ♦ | ♦ | 500 | ♦ | ♦ | |||||
| LQ34SF15ADB | 15 | ♦ | ♦ | 500 | ♦ | ♦ | |||||
| DC 3 линии | LQ20SF07ANA | 7 | ♦ | ♦ | ♦ | 1000 | ♦ | ♦ | |||
| LQ20SF07ANB | 7 | ♦ | ♦ | ♦ | 1000 | ♦ | ♦ | ||||
| LQ20SF07APA | 7 | ♦ | ♦ | ♦ | 1000 | ♦ | ♦ | ||||
| LQ20SF07APB | 7 | ♦ | ♦ | ♦ | 1000 | ♦ | ♦ | ||||
| LQ34SF15ANA | 15 | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | ||||
| LQ34SF15ANB | 15 | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | ||||
| LQ34SF15APA | 15 | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | ||||
| LQ34SF15APB | 15 | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | ||||
| DC 4 линии | LQ20SF07ANR | 7 | ♦ | ♦ | ♦ | ♦ | 1000 | ♦ | ♦ | ||
| LQ20SF07APR | 7 | ♦ | ♦ | ♦ | ♦ | 1000 | ♦ | ♦ | |||
| LQ34SF15ANR | 15 | ♦ | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | |||
| LQ34SF15APR | 15 | ♦ | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | |||
| AC 2 линии | LQ20SF07CAA | 7 | ♦ | ♦ | 20 | ||||||
| LQ20SF07CAB | 7 | ♦ | ♦ | 20 | |||||||
| LQ34SF15CAA | 15 | ♦ | ♦ | 20 | |||||||
| LQ34SF15CAB | 15 | ♦ | ♦ | 20 | |||||||
|
LQ20SF07ADA LQ20SF07ADB LQ20SF07ANA LQ20SF07ANB LQ20SF07APA LQ20SF07APB LQ20SF07ANR LQ20SF07APR LQ20SF07CAA LQ20SF07CAB |
|
LQ34SF15ADA LQ34SF15ADB LQ34SF15ANA LQ34SF15ANB LQ34SF15APA LQ34SF15APB LQ34SF15ANR LQ34SF15APR LQ34SF15CAA LQ34SF15CAB |
 |
