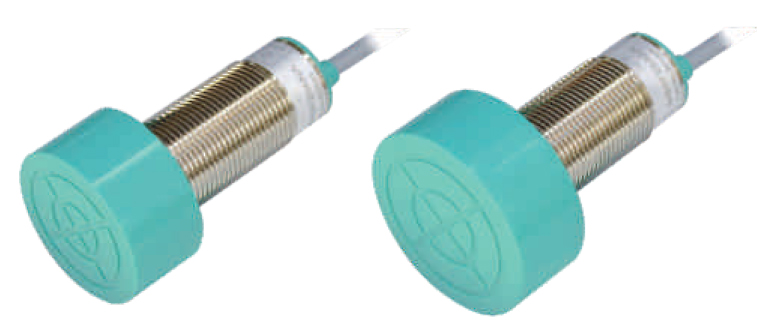

Цилиндрические индуктивные датчики Rock LM48/LM55 (M24)
|
|
Материал корпуса: хромированная латунь Посадочный диаметр: М24 Класс защиты: IP67 Температура внешней среды: -25ºС..+70ºС Стандарты: GB/T14048.10 Максимальный ток нагрузки: 200мА Расстояние срабатывания: 15мм Внешняя резьба Кабель: 2м Желтый LED индикатор |
|
Раб. форма |
Тип | Питание | Выход | Защита | |||||||
|
Расстояние срабатывания, mm |
10-30 VDC |
20-250 VAC |
NPN | PNP | NO | NC |
Частота переключения, Hz |
От короткого замыкания | От пере-полюсовки | ||
| DC 2 линии | LM48F20ADA | 20 | ♦ | ♦ | 200 | ♦ | ♦ | ||||
| LM48F20ADB | 20 | ♦ | ♦ | 200 | ♦ | ♦ | |||||
|
LM55F25ADA |
25 | ♦ | ♦ | 200 | ♦ | ♦ | |||||
| LM55F25ADB | 25 | ♦ | ♦ | 200 | ♦ | ♦ | |||||
| DC 3 линии | LM48F20ANA | 20 | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | |||
| LM48F20ANB | 20 | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | ||||
| LM48F20APA | 20 | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | ||||
| LM48F20APB | 20 | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | ||||
| LM55F25ANA | 25 | ♦ | ♦ | ♦ | 500 | ♦ | ♦ | ||||
| LM55F25ANB | 25 | ♦ | ♦ | ♦ | 500 | ♦ | ♦ | ||||
| LM55F25APA | 25 | ♦ | ♦ | ♦ | 500 | ♦ | ♦ | ||||
| LM55F25APB | 25 | ♦ | ♦ | ♦ | 500 | ♦ | ♦ | ||||
| DC 4 линии | LM48F20ANR | 20 | ♦ | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | ||
| LM48F20APR | 20 | ♦ | ♦ | ♦ | ♦ | 800 | ♦ | ♦ | |||
| LM55F25ANR | 25 | ♦ | ♦ | ♦ | ♦ | 500 | ♦ | ♦ | |||
| LM55F25APR | 25 | ♦ | ♦ | ♦ | ♦ | 500 | ♦ | ♦ | |||
| AC 2 линии | LM48F20CAA | 20 | ♦ | ♦ | 20 | ||||||
| LM48F20CAB | 20 | ♦ | ♦ | 20 | |||||||
| LM55F25CAA | 25 | ♦ | ♦ | 20 | |||||||
| LM55F25CAB | 25 | ♦ | ♦ | 20 | |||||||
|
LM48F20ADA LM48F20ADB LM48F20ANA LM48F20ANB LM48F20APA LM48F20APB LM48F20ANR LM48F20APR LM48F20CAA LM48F20CAB |
|
LM55F25ADA LM55F25ADB LM55F25ANA LM55F25ANB LM55F25APA LM55F25APB LM55F25ANR LM55F25APR LM55F25CAA LM55F25CAB |
 |
