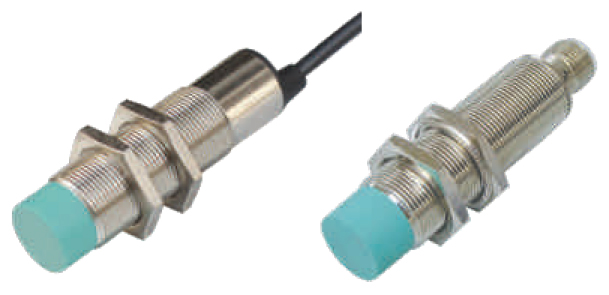

Цилиндрические индуктивные датчики Rock LM18F08 (M18)
Материал корпуса: хромированная латунь
Посадочный диаметр: М18
Класс защиты: IP67
Температура внешней среды: -25ºС..+70ºС
Стандарты: GB/T14048.10
Максимальный ток нагрузки: 200мА
Расстояние срабатывания: 8мм
| Рабочая форма | Тип | Питание | Выход | Защита | Метод коммутации | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-30 VDC | 20-250 VAC | NPN | PNP | NO | NC | Кольцевой LED индикатор, желтый | LED индикатор, желтый | От короткого замыкания | От пере-полюсовки |
Кабель 2м |
Разъем | ||
| DC 2 линии | LM18F08ADA | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM18F08ADB | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||||
| LM18F08ADA-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM18F08ADB-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| DC 3 линии | LM18F08ANA | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| LM18F08ANB | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM18F08APA | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||||
| LM18F08APB | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||||
| LM18F08ANA-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM18F08ANB-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| LM18F08APA-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM18F08APB-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| DC 4 линии | LM18F08ANR | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| LM18F08APR | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM18F08ANR-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| LM18F08APR-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| AC 2 линии | LM18F08CAA | ♦ | ♦ | ♦ | ♦ | ||||||||
| LM18F08CAB | ♦ | ♦ | ♦ | ||||||||||
| LM18F08CAA-E2 | ♦ | ♦ | ♦ | ♦ | |||||||||
| LM18F08CAB-E2 | ♦ | ♦ | ♦ | ♦ | |||||||||
|
LM18F08ADA LM18F08ADB LM18F08ANA LM18F08ANB LM18F08APA LM18F08APB |
LM18F08ANR LM18F08APR LM18F08CAA LM18F08CAB |
LM18F08ANA-E2 LM18F08ANB-E2 LM18F08APA-E2 LM18F08APB-E2 LM18F08ADA-E2 LM18F08ADB-E2 |
LM18F08ANR-E2 LM18F08APR-E2 LM18F08CAA-E2 LM18F08CAB-E2 |
 |
 |
 |
 |
