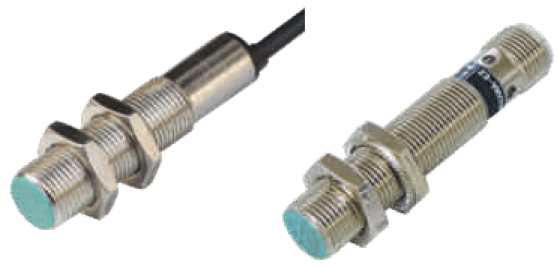

Цилиндрические индуктивные датчики Rock LM12M02 (M12)
Материал корпуса: хромированная латунь
Посадочный диаметр: М12
Класс защиты: IP67
Температура внешней среды: -25ºС..+70ºС
Стандарты: GB/T14048.10
Максимальный ток нагрузки: 200мА
Расстояние срабатывания: 2мм
| Раб. форма | Тип | Питание | Выход | Защита | Метод коммутации | ||||||||
| 10-30 VDC | 20-250 VAC | NPN | PNP | NO | NC |
Кольцевой LED индикатор, желтый |
LED индикатор, желтый | От короткого замыкания | От пере-полюсовки |
Кабель 2м |
Разъем | ||
| DC 2 линии | LM12M02ADA | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM12M02ADB | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||||
| LM12M02ADA-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM12M02ADB-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| DC 3 линии | LM12M02ANA | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| LM12M02ANB | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM12M02APA | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||||
| LM12M02APB | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||||
| LM12M02ANA-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM12M02ANB-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| LM12M02APA-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM12M02APB-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| DC 4 линии | LM12M02ANR | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| LM12M02APR | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||||
| LM12M02ANR-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| LM12M02APR-E2 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||||
| AC 2 линии | LM12M02CAA | ♦ | ♦ | ♦ | ♦ | ||||||||
| LM12M02CAB | ♦ | ♦ | ♦ | ||||||||||
| LM12M02CAA-E2 | ♦ | ♦ | ♦ | ♦ | |||||||||
| LM12M02CAB-E2 | ♦ | ♦ | ♦ | ♦ | |||||||||
|
|
|
|
 |
 |
 |
 |
