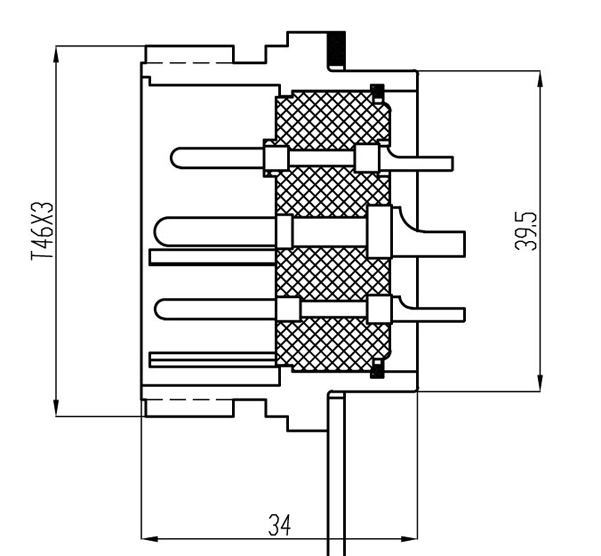

P46-B Описание
Description
| No. of Contacts | 9 |
| Part No. | P46-9B |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 9 |
| Rated current/Voltage | 46A 400V/20A 360V |
| Operation limt voltage(AC.Vrms) | 700V/500V |
| Withstanding voltage(AC.V.rms)1 min. | 2000 |
| Insulation resistance (MΩ min.)at dc 500V | 2000 |
| Contact resistance(MΩ max.)at dc 1A | 1 |
| Solder inter diameter | Φ3.5×4/Φ2.4×5 |
