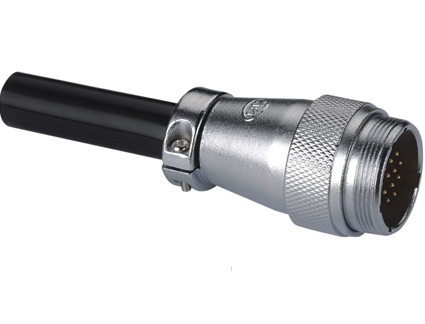

P24F-K Описание
Description

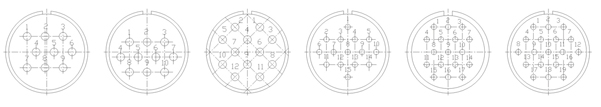

| No. of Contacts | 9 | 10 | 12 | 15 | 17 | 19 |
| Part No. | P24F-9K | P24F-10K | P24F-12K | P24F-15K | P24F-17K | P24F-19K |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 9 | 10 | 12 | 15 | 17 | 19 |
| Rated current/Voltage | 5A 220V | 5A 220V | 3A 110V | 3A 50V | 3A 50V | 3A 50V |
| Operation limt voltage(AC.Vrms) | 0/250 | 0/250 | 0/130 | 0/50 | 0/50 | 0/50 |
| Withstanding voltage(AC.V.rms)1 min. | 1800 | 1500 | 1500 | 1000 | 1000 | 1000 |
| Insulation resistance (MΩ min.)at dc 500V | 2000 | 1800 | 1500 | 1000 | 1500 | 1500 |
| Contact resistance(MΩ max.)at dc 1A | 1.0/3.0 | 1.0/3.0 | 1.0/3.0 | 3.0/5.0 | 3.0/5.0 | 3.0/5.0 |
| Solder inter diameter | Φ 1.6 | Φ 1.6 | Φ 1.6 | Φ 1 | Φ 1 | Φ 1 |
