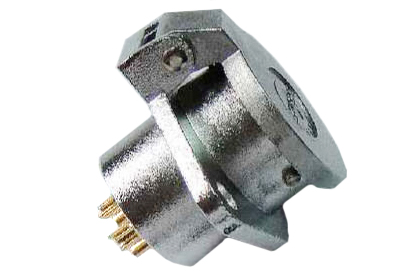

P20W-B Описание
Description
| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 |
| Part No. | P20-2A | P20-3A | P20-4A | P20-5A | P20-6A | P20-7A | P20-8A | P20-9A | P20-10A | P20-12A |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 |
| Rated current/Voltage | 30A 400V | 30A 400V | 30A 400V | 30A 380V | 5A 150V | 5A 150V | 3A 125V | 3A 125V | 3A 125V | 3A 125V |
| Operation limt voltage(AC.Vrms) | 500 | 500 | 500 | 400 | 200 | 200 | 200 | 200 | 200 | 200 |
| Withstanding voltage(AC.V.rms)1 min. | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance (MΩ min.)at dc 500V | 2000 | 2000 | 2000 | 2000 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Contact resistance(MΩ max.)at dc 1A | 1 | 1 | 1 | 1 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
| Solder inter diameter | Φ 2.8 | Φ 2.8 | Φ2.8 | Φ 2.8 | Φ 1.6 | Φ 1.6 | Φ 1 | Φ 1 | Φ 1 | Φ 1 |
