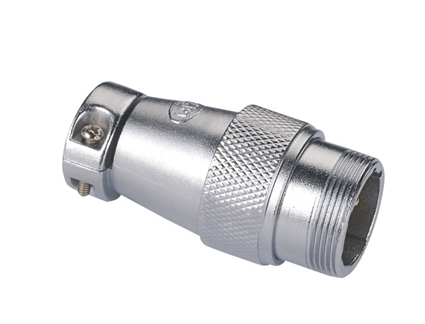

P20F-K Описание
Description

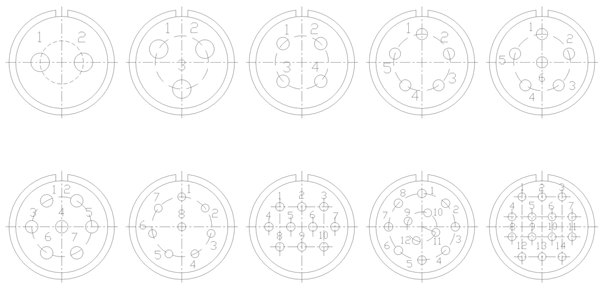

| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 |
| Part No. | P20F-2K | P20F-3K | P20F-4K | P20F-5K | P20F-6K | P20F-7K | P20F-8K | P20F-10K | P20F-12K | P20F-14K |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 2 | 3 | 4 | 4A | 5 | 7 | 8 | 10 | 12 | 14 |
| Rated current/Voltage | 20A 250V | 20A 250V | 15A 250V | 10A 150V | 10A 150V | 10A 150V | 3A 125V | 3A 125V | 3A 125V | 3A 125V |
| Operation limt voltage(AC.Vrms) | 250 | 250 | 250 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Withstanding voltage(AC.V.rms)1 min. | 2000 | 2000 | 2000 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance (MΩ min.)at dc 500V | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 1500 | 1500 | 1500 | 1500 |
| Contact resistance(MΩ max.)at dc 1A | 2 | 2 | 2 | 1.7 | 1.7 | 1.7 | 1.2 | 1.2 | 1.2 | 1.2 |
| Solder inter diameter | Φ 2.5 | Φ 2.5 | Φ 2.5 | Φ 1.6 | Φ 1.6 | Φ 1.6 | Φ 1 | Φ 1 | Φ 1 | Φ 1 |
