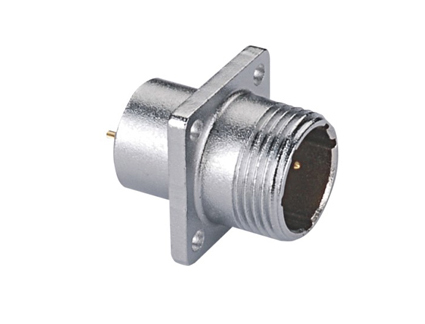

P12-B Описание
Description

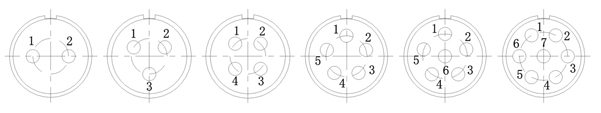

| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 |
| Part No. | P12-2B | P12-3B | P12-4B | P12-5B | P12-6B | P12-7B |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| 接触体数量(芯数) | 2 | 3 | 4 | 5 | 6 | 7 |
| 额定/电压 | 3A 220V | 3A 220V | 3A 220V | 3A 110V | 3A 110V | 3A 110V |
| 工作 电压(AC.Vrms) | 0/250 | 0/250 | 0/250 | 0/130 | 0/130 | 0/130 |
| 耐 电压(AC.V.rms)1 min. | 2000 | 2000 | 2000 | 1800 | 1500 | 1500 |
| 绝缘体阻抗(MΩ min.)at dc 500V | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| 接触体 阻抗(MΩ max.)at dc 1A | 1.0/2.0 | 4.0/6.0 | 4.0/6.0 | 4.0/6.0 | 4.0/6.0 | 4.0/6.0 |
| 插针(孔径mm) | Φ 1 | Φ 1 | Φ 1 | Φ 1 | Φ 1 | Φ 1 |
