Description

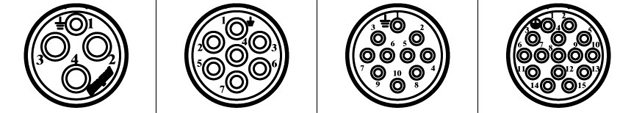

No. of Contacts | 4 | 7 | 10 | 15 |
Part No. | MY20-4B | MY20-7B | MY20-10B | MY20-15B |
Parts |
Material |
Shell | Zinc Alloy |
Finish | Nickel plating |
Insulator | Bakelite |
Contact | Copper Alloy |
No.Of contacts | 4 | 7 | 10 | 15 |
Rated current/Voltage | 20A 380V | 10A 220V | 5A 220V | 5A 110V |
Operation limt voltage(AC.Vrms) | 0/400 | 0/250 | 0/250 | 0/130 |
Withstanding voltage(AC.V.rms)1 min. | 1500 | 1500 | 1500 | 1500 |
Insulation resistance (MΩ min.)at dc 500V | 2000 | 2000 | 2000 | 1500 |
Contact resistance(MΩ max.)at dc 1A | 0/1.0 | 0/1.0 | 1.0/2.0 | 1.0/2.0 |
Solder inter diameter | 3.6/2.4 | Φ2.4 | Φ1.5 | Φ1.5 |
