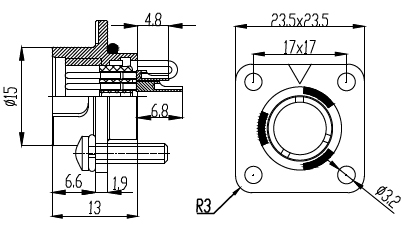

DK183-H Описание
Description

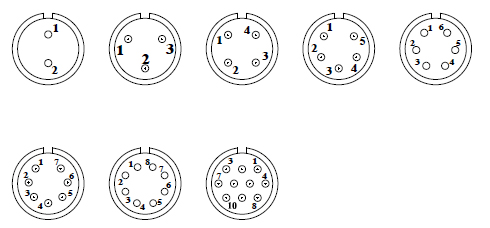

| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
| Part No. | DK183-2H | DK183-3H | DK183-4H | DK183-5H | DK183-6H | DK183-7H | DK183-8H | DK183-10H |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
| Rated current/Voltage | 4A 220V | 4A 220V | 3A 200V | 3A 200V | 3A 200V | 3A 200V | 3A 200V | 3A 200V |
| Operation limt voltage(AC.Vrms) | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Withstanding voltage(AC.V.rms)1 min. | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance (MΩ min.)at dc 500V | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Contact resistance(MΩ max.)at dc 1A | ≤22 | ≤22 | ≤22 | ≤22 | ≤22 | ≤22 | ≤22 | ≤22 |
| Solder inter diameter | Φ 0.8 | Φ 0.8 | Φ 0.8 | Φ 0.8 | Φ 0.8 | Φ 0.8 | Φ 0.8 | Φ 0.8 |
