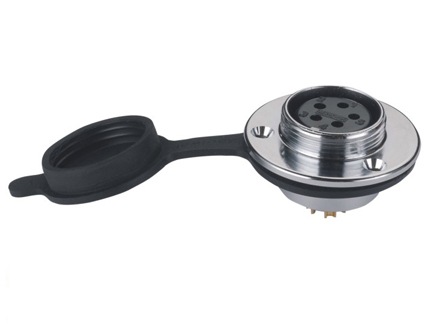

30MF-E Описание

 Description

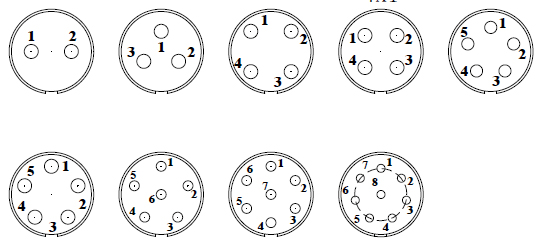

No. of Contacts 2 3 4 5 6 7 8
Part No. 30MF-2E 30MF-3E 30MF-4E 30MF-5E 30MF-6E 30MF-7E 30MF-8E

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8
Rated current/Voltage 20A 300V 20A 300V 15A 250V 15A 250V 10A 150V 10A 150V 7A 150V
Operation limt voltage(AC.Vrms) 500 500 400 400 250 250 200
Withstanding voltage(AC.V.rms)1 min. 2000 2000 2000 1500 1500 1500 1500
Insulation resistance (MΩ min.)at dc 500V 2000 2000 2000 2000 2000 2000 2000
Contact resistance(MΩ max.)at dc 1A 1 1 1 1 1 1 1
Solder inter diameter Φ 3.45 Φ 3.45 Φ 3.45 Φ 3.45 Φ 2.5 Φ 2.5 Φ 2.0
