30M-A2 Описание
Description

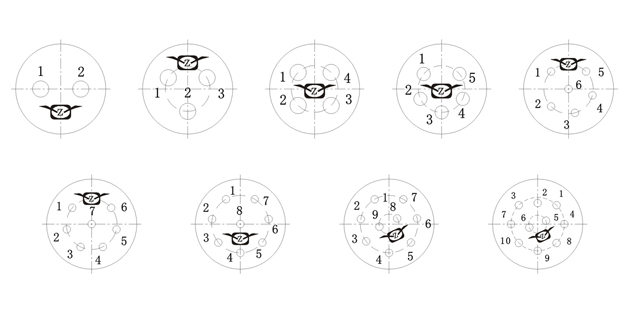

| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
| Part No. | 30M-2A2 | 30M-3A2 | 30M-4A2 | 30M-5A2 | 30M-6A2 | 30M-7A2 | 30M-8A2 | 30M-10A2 |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
| Rated current/Voltage | 20A 300V | 20A 300V | 20A 300V | 15A 250V | 15A 250V | 15A 250V | 10A 150V | 7A 150V |
| Operation limt voltage(AC.Vrms) | 500 | 500 | 500 | 400 | 400 | 400 | 250 | 200 |
| Withstanding voltage(AC.V.rms)1 min. | 2000 | 2000 | 2000 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance (MΩ min.)at dc 500V | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Contact resistance(MΩ max.)at dc 1A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 3 |

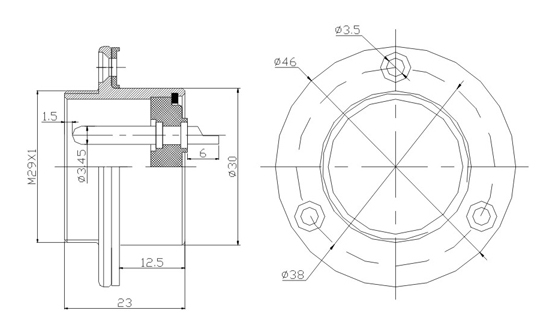

| Solder inter diameter | Φ 3.5 | Φ 3.5 | Φ 3.5 | Φ 3.45 | Φ 3.45 | Φ 3.45 | Φ 3.0 | Φ 2.45 |
