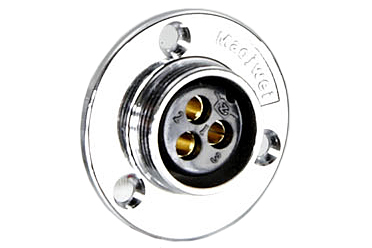

18MF-E Описание
Description

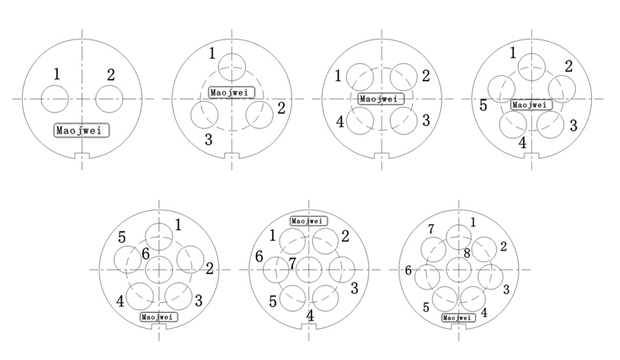

| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Part No. | 18MF-2E | 18F-3E | 18MF-4E | 18MF-5E | 18MF-6E | 18MF-7E | 18MF-8E |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Rated current/Voltage | 10A 220V | 10A 220V | 7A 220V | 5A 150V | 5A 125V | 5A 125V | 5A 125V |
| Operation limt voltage(AC.Vrms) | 250 | 250 | 250 | 250 | 200 | 200 | 200 |
| Withstanding voltage(AC.V.rms)1 min. | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance (MΩ min.)at dc 500V | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Contact resistance(MΩ max.)at dc 1A | 1.5 | 1.5 | 1.5 | 2 | 3 | 3 | 3 |
| Solder inter diameter | Φ 2.95 | Φ 2.95 | Φ 2.95 | Φ 2 | Φ 1.5 | Φ 1.5 | Φ 1.5 |
