16M-F1 Описание
Description

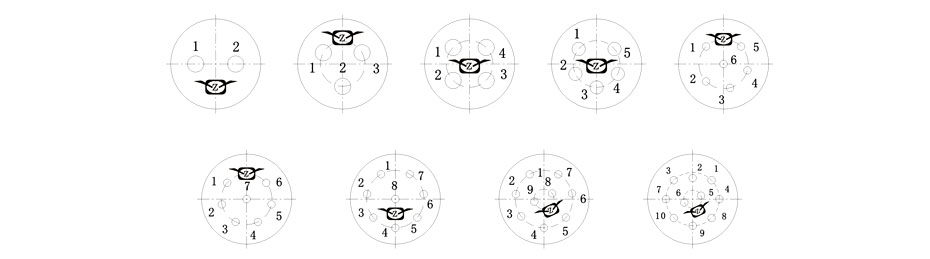

| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Part No. | 16M-2F1 | 16M-3F1 | 16M-4F1 | 16M-5F1 | 16M-6F1 | 16M-7F1 | 16M-8F1 | 16M-9F1 | 16M-10F1 |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Rated current/Voltage | 10A 200V | 10A 200V | 10A 125V | 10A 125V | 5A 125V | 5A 125V | 5A 125V |
| Operation limt voltage(AC.Vrms) | 250 | 250 | 200 | 200 | 200 | 200 | 200 |
| Withstanding voltage(AC.V.rms)1 min. | 1000 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance (MΩ min.)at dc 500V | 1000 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Contact resistance(MΩ max.)at dc 1A | 3 | 3 | 3 | 3 | 3 | 5 | 5 |
| Solder inter diameter | Φ1.6 | Φ 1.6 | Φ 1.6 | Φ 1.6 | Φ 1.2 | Φ 1.2 | Φ 1.2 |
