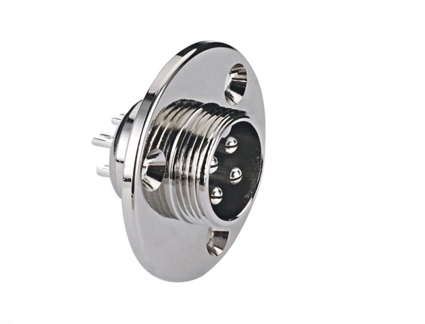

16M-E Описание
Description
| No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Part No. | 16M-2A | 16M-3A | 16M-4A | 16M-5A | 16M-6A | 16M-7A | 16M-8A | 16M-9A | 16M-10A |
|
Parts |
Material |
| Shell | Zinc Alloy |
| Finish | Nickel plating |
| Insulator | Bakelite |
| Contact | Copper Alloy |
| No.Of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Rated current/Voltage | 7A 125V | 7A 125V | 5A 12V | 5A 125V | 4A 125V | 4A 125V | 4A 125V | 4A 125V | 4A 125V |
| Operation limt voltage(AC.Vrms) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Withstanding voltage(AC.V.rms)1 min. | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance (MΩ min.)at dc 500V | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Contact resistance(MΩ max.)at dc 1A | 1.5 | 1.5 | 1.5 | 2 | 5 | 5 | 5 | 5 | 5 |
| Solder inter diameter | Φ2.45 | Φ2.45 | Φ 2.45 | Φ 2 | Φ 1.15 | Φ 1.15 | Φ 1.15 | Φ 1.15 | Φ 1.15 |
