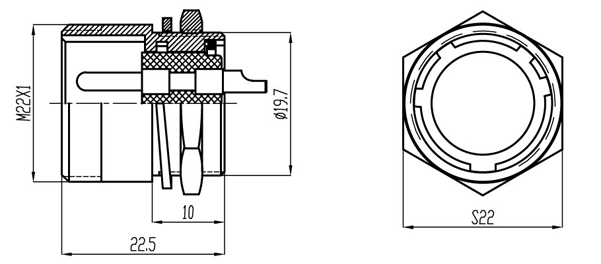

P20-C Описание

 Description

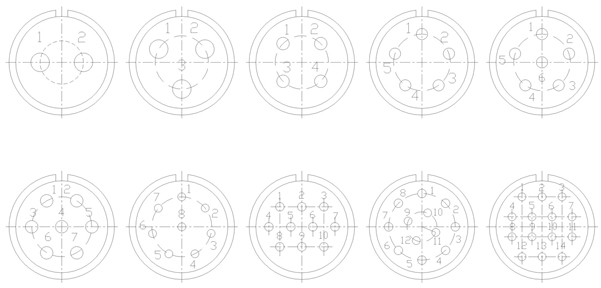

No. of Contacts 2 3 4 5 6 7 8 10 12 14
Part No. P20-2C P20-3C P20-4C P20-5C P20-6C P20-7C P20-8C P20-10C P20-12C P20-14C

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 4A 5 7 8 10 12 14
Rated current/Voltage 20A 250V 20A 250V 15A 250V 10A 150V 10A 150V 10A 150V 3A 125V 3A 125V 3A 125V 3A 125V
Operation limt voltage(AC.Vrms) 250 250 250 200 200 200 200 200 200 200
Withstanding voltage(AC.V.rms)1 min. 2000 2000 2000 1500 1500 1500 1500 1500 1500 1500
Insulation resistance (MΩ min.)at dc 500V 2000 2000 2000 2000 2000 2000 1500 1500 1500 1500
Contact resistance(MΩ max.)at dc 1A 2 2 2 1.7 1.7 1.7 1.2 1.2 1.2 1.2
Solder inter diameter Φ 2.5 Φ 2.5 Φ 2.5 Φ 1.6 Φ 1.6 Φ 1.6 Φ 1 Φ 1 Φ 1 Φ 1
