19M-E Описание

 Description

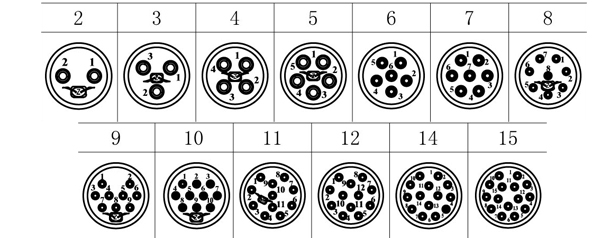

No. of Contacts 2 3 4 5 6 7 8
Part No. 19M-2E 19M-3E 19M-4E 19M-5E 19M-6E 19M-7E 19M-8E
No. of Contacts 9 10 11 12 14 15
Part No. 19M-2E 19M-3E 19M-4E 19M-5E 19M-7E 19M-8A

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8 9 10 11 12 14 15
Rated current/Voltage 10A 250V 7A 250V 7A 250V 7A 150V 5A 150V 5A 150V 5A 150V 5A 150V 5A 150V 5A 150V 5A 150V 5A 150V 5A 150V
Operation limt voltage(AC.Vrms) 250 250 250 200 200 200 200 200 200 200 200 200 200
Withstanding voltage(AC.V.rms)1 min. 1500 1500 1500 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
Insulation resistance (MΩ min.)at dc 500V 1500 1500 1500 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
Contact resistance(MΩ max.)at dc 1A 3 3 3 3 3 3 3 3 3 3 3 3 3
Solder inter diameter(mm) Φ 2.45 Φ 2.45 Φ 2.45 Φ 2.0 Φ1.2 Φ1. 2 Φ 1.2 Φ 1.2 Φ 1.2 Φ 1.2 Φ 1.2 Φ 1.2 Φ 1.2
