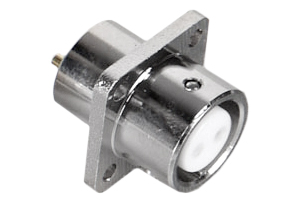

XS12F-H Описание

 Description

No. of Contacts 2 3 4 5 6 7 8
Part No. XS12F-2H XS12F-3H XS12F-4H XS12F-5H XS12F-6H XS12F-7H XS12F-8H

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy with golden plated

Dimensions

Arrangements

No.Of contacts 2 3 4 5 6 7 8
Rated current/Voltage 5A 220V 3A 220V 3A 110V 3A 110V 3A 50V 3A 50V 3A 50V
Operation limt voltage(AC.Vrms) 0/250 0/250 0/130 0/130 0/50 0/50 0/50
Withstanding voltage(AC.V.rms)1 min. 1500 1500 1000 1000 1000 1000 1000
Insulation resistance (MΩ min.)at dc 500V 2000 2000 2000 2000 1500 1500 1000
Contact resistance(MΩ max.)at dc 1A 1.0/2.0 2.0/5.0 2.0/5.0 2.0/5.0 2.0/5.0 2.0/5.0 2.0/5.0
Solder inter diameter Φ 1.6 Φ 1 Φ 1 Φ 1 Φ 1 Φ 1 Φ 1
