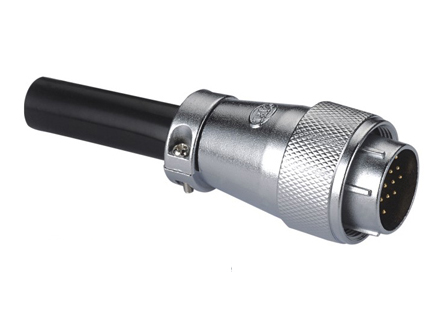

P24F-A Описание

 Description

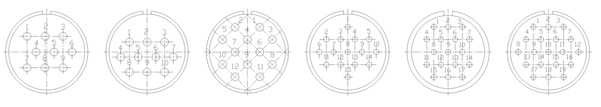

No. of Contacts 9 10 12 15 17 19
Part No. P24F-9A P24F-10A P24F-12A P24F-15A P24F-17A P24F-19A

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 9 10 12 15 17 19
Rated current/Voltage 5A 220V 5A 220V 3A 110V 3A 50V 3A 50V 3A 50V
Operation limt voltage(AC.Vrms) 0/250 0/250 0/130 0/50 0/50 0/50
Withstanding voltage(AC.V.rms)1 min. 1800 1500 1500 1000 1000 1000
Insulation resistance (MΩ min.)at dc 500V 2000 1800 1500 1000 1500 1500
Contact resistance(MΩ max.)at dc 1A 1.0/3.0 1.0/3.0 1.0/3.0 3.0/5.0 3.0/5.0 3.0/5.0
Solder inter diameter Φ 1.6 Φ 1.6 Φ 1.6 Φ 1 Φ 1 Φ 1
