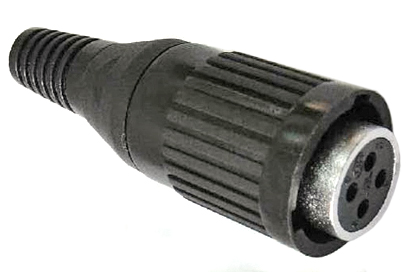

P20W-A Описание

 Description

No. of Contacts 2 3 4 5 6 7 8 9 10 12
Part No. P20W-2A P20W-3A P20W-4A P20W-5A P20W-6A P20W-7A P20W-8A P20W-9A P20W-10A P20W-12A

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8 9 10 12
Rated current/Voltage 30A 400V 30A 400V 30A 400V 30A 380V 5A 150V 5A 150V 3A 125V 3A 125V 3A 125V 3A 125V
Operation limt voltage(AC.Vrms) 500 500 500 400 200 200 200 200 200 200
Withstanding voltage(AC.V.rms)1 min. 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500
Insulation resistance (MΩ min.)at dc 500V 2000 2000 2000 2000 1500 1500 1500 1500 1500 1500
Contact resistance(MΩ max.)at dc 1A 1 1 1 1 2.5 2.5 2.5 5 5 5
Solder inter diameter Φ 2.8 Φ 2.8 Φ2.8 Φ 2.8 Φ 1.6 Φ 1.6 Φ 1 Φ 1 Φ 1 Φ 1
