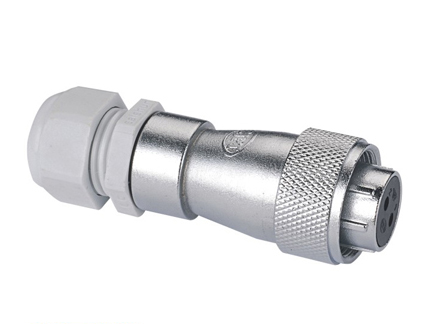

PC16-A Описание

 Description

No. of Contacts 2 3 4 5 6 7 8 9
Part No. PC16-2A PC16-3A PC16-4A PC16-5A PC16-6A PC16-7A PC16-8A PC16-9A

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8 9
Rated current/Voltage 3A 220V 3A 220V 3A 220V 3A 220V 3A 220V 3A 110V 3A 50V 3A 50V
Operation limt voltage(AC.Vrms) 0/250 0/250 0/250 0/130 0/130 0/130 0/50 0/50
Withstanding voltage(AC.V.rms)1 min. 1000 1500 1800 1800 1500 1800 1800 1500
Insulation resistance (MΩ min.)at dc 500V 1500 1500 2000 2000 1800 2000 2000 1500
Contact resistance(MΩ max.)at dc 1A 1.0/3.0 2.0/3.0 3.0/5.0 3.0/5.0 4.0/6.0 4.0/6.0 3.0/6.0 3.0/6.0
Solder inter diameter Φ 1.6 Φ 1.6 Φ 1 Φ 1 Φ 1 Φ 1 Φ 1 Φ 1
