Description

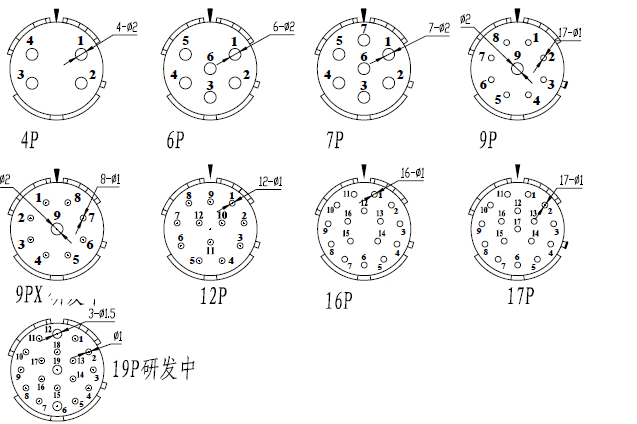

No. of Contacts | 4 | 6 | 7 | 9 | 9PX | 12 | 16 | 17 | 19 |
Part No. | M623-4A | M623-6A | M623-7A | M623-9A | P623-9A | M623-12A | M623-16A | M623-17A | M623-19A |
Parts |
Material |
Shell | Zinc Alloy |
Finish | Nickel plating |
Insulator | Bakelite |
Contact | Copper Alloy |
No.Of contacts | 4 | 6 | 7 | 9 | 9PX | 12 | 16 | 17 | 19 |
Rated current/Voltage | 20A 300V | 20A 300V | 20A 300V | 20A 300V | 20A 300V | 8A 260V | 8A 260V | 8A 260V | 20A 300V |
Operation limt voltage(AC.Vrms) | 250 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Withstanding voltage(AC.V.rms)1 min. | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
Insulation resistance (MΩ min.)at dc 500V | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
Contact resistance(MΩ max.)at dc 1A | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Contact resistance Φ(mm) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 1.3 | 1.3 | 1.3 | 1.3 |
Solder inter diameterΦ(mm) | 2 | 2 | 2 | 2×1 | 2×1 | 1 | 1 | 1 | 1.5×3 |
