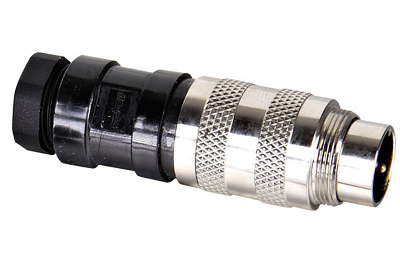

J09PGF-K Описание

Description

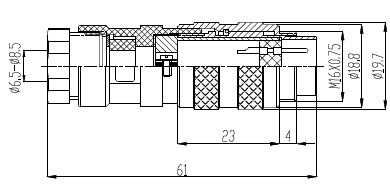

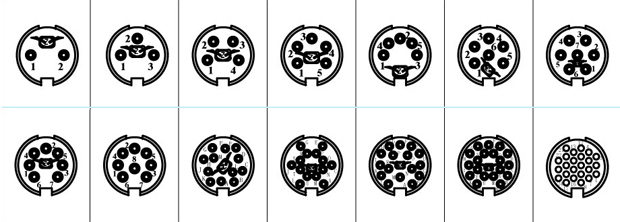

No. of Contacts 2 3 4 5 5A 6 7 7A 8 12 14 16 19 24
Part No. J09PG-2A J09PGF-3K J09PGF-4K J09PGF-5K J09PGF-5K J09PGF-6K J09PGF-7K J09PGF-7K J09PGF-8K J09PGF-12K J09PGF-14K J09PGF-16K J09PGF-19K J09PGF-24K

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy



No.Of contacts 2 3 4 5 5 6 7
Rated current/Voltage 5A 220V 5A 220V 3A 220V 3A 110V 3A 110V 3A 220V 3A 220V
Operation limt voltage(AC.Vrms) 0/250 0/250 0/250 0/250 0/250 0/250 0/220
Withstanding voltage(AC.V.rms)1 min. 2000 2000 1500 1500 1500 1500 1500
Insulation resistance (MΩ min.)at dc 500V 2000 2000 2000 2000 1500 2000 2000
Contact resistance(MΩ max.)at dc 1A 1.0/2.0 1.0/2.0 1.0/2.0 1.0/2.0 1.0/2.0 1.0/2.0 1.0/2.0
Solder inter diameter Φ 1.5 Φ 1.5 Φ 1.5 Φ 1.5 Φ 1.5 Φ 1.5 Φ 1.5
7 8 12 14 16 19 24
3A 110V 3A 110V 3A 110V 3A 110V 3A 50V 3A 50V 3A 50V
0/130 0/130 0/130 0/130 0/130 0/50 0/50
1000 1000 1500 1000 1500 1000 1000
1500 1500 2000 1500 2000 1500 1500
1.0/2.0 1.0/2.0 2.0/3.0 2.0/3.0 2.0/3.0 2.0/3.0 2.5/4.0
Φ 1.5 Φ 1.5 Φ0.95 Φ0.95 Φ0.95 Φ0.95 Φ0.5
