DK182-A Описание

 Description

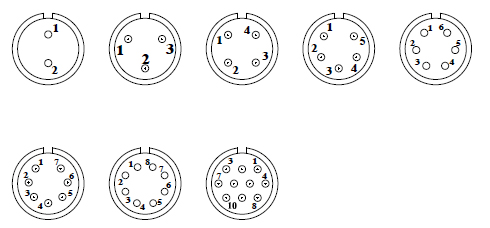

No. of Contacts 2 3 4 5 6 7 8 10
Part No. DK182-2A DK182-3A DK182-4A DK182-5A DK182-6A DK182-7A DK182-8A DK182-10A

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8 10
Rated current/Voltage 4A 220V 4A 220V 3A 200V 3A 200V 3A 200V 3A 200V 3A 200V 3A 200V
Operation limt voltage(AC.Vrms) 125 125 125 125 125 125 125 125
Withstanding voltage(AC.V.rms)1 min. 1500 1500 1500 1500 1500 1500 1500 1500
Insulation resistance (MΩ min.)at dc 500V 1500 1500 1500 1500 1500 1500 1500 1500
Contact resistance(MΩ max.)at dc 1A ≤22 ≤22 ≤22 ≤22 ≤22 ≤22 ≤22 ≤22
Solder inter diameter Φ 0.8 Φ 0.8 Φ 0.8 Φ 0.8 Φ 0.8 Φ 0.8 Φ 0.8 Φ 0.8
