40M-A Описание

Description

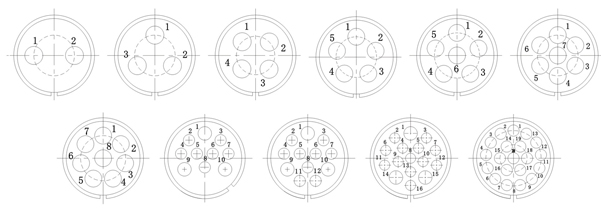

No. of Contacts 2 3 4 5 6 7 8 10 12 16 20
Part No. 40M-2A 40M-3A 40M-4A 40M-5A 40M-6A 40M-7A 40M-8A 40M-10A 40M-12A 40M-16A 40M-20A

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8 10 12 16 20
Rated current/Voltage 30A 400V 30A 400V 30A 400V 25A 250V 25A 250V 25A 250V 20A 150V 10A 150V 7A 150V 7A 150V 7A 150V
Operation limt voltage(AC.Vrms) 500 500 500 400 400 400 300 200 200 200 200
Withstanding voltage(AC.V.rms)1 min. 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000
Insulation resistance (MΩ min.)at dc 500V 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000
Contact resistance(MΩ max.)at dc 1A 1 1 1 1 1 1 1 1 1 1 1
Solder inter diameter Φ 6.0 Φ 6.0 Φ 6.0 Φ 5.0 Φ 5.0 Φ 5.0 Φ 4.5 Φ2.0 Φ20 Φ2.0 Φ2.0
