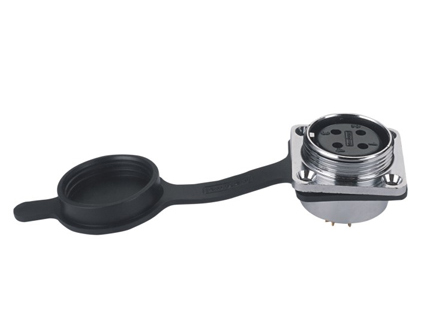

25M-H Описание

 Description

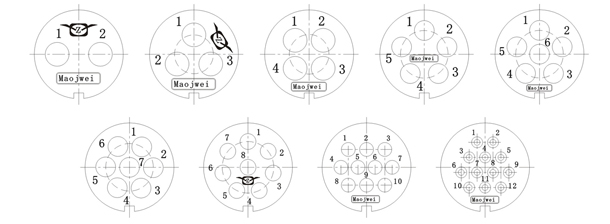

No. of Contacts 2 3 4 5 6 7 8 10 12
Part No. 25M-2H 25M-3H 25M-4H 25M-5H 25M-6H 25M-7H 25M-8H 25M-10H 25M-12H

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8 10 12
Rated current/Voltage 20A 300V 20A 300V 15A 250V 15A 250V 12A 250V 12A 250V 7A 150V 7A 150V 5A 150V
Operation limt voltage(AC.Vrms) 500 500 400 400 300 300 200 200 200
Withstanding voltage(AC.V.rms)1 min. 2000 2000 2000 1500 1500 1500 1500 1500 1500
Insulation resistance (MΩ min.)at dc 500V 2000 2000 2000 2000 2000 2000 2000 2000 2000
Contact resistance(MΩ max.)at dc 1A 1 1 1 1 1 1 3 3 3
Solder inter diameter Φ 3.5 Φ 3.5 Φ 3.5 Φ3.0 Φ 3.0 Φ 3.0 Φ 2 Φ 2 Φ1.5
