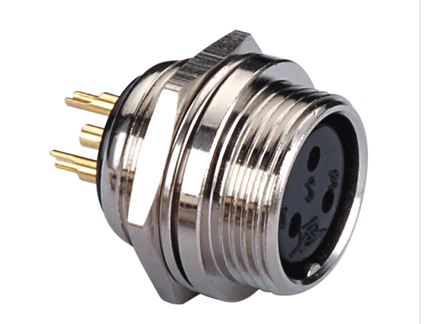

16MF-G Описание

 Description

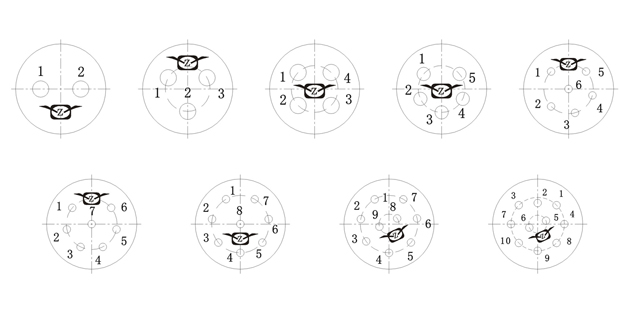

No. of Contacts 2 3 4 5 6 7 8
Part No. 16MF-2G 16MF-3G 16MF-4G 16MF-5G 16MF-6G 16MF-7G 16MF-8G

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8
Rated current/Voltage 10A 200V 10A 200V 10A 125V 10A 125V 5A 125V 5A 125V 5A 125V
Operation limt voltage(AC.Vrms) 250 250 200 200 200 200 200
Withstanding voltage(AC.V.rms)1 min. 1000 1500 1500 1500 1500 1500 1500
Insulation resistance (MΩ min.)at dc 500V 1000 1500 1500 1500 1500 1500 1500
Contact resistance(MΩ max.)at dc 1A 3 3 3 3 3 5 5
Solder inter diameter Φ1.6 Φ 1.6 Φ 1.6 Φ 1.6 Φ 1.2 Φ 1.2 Φ 1.2
