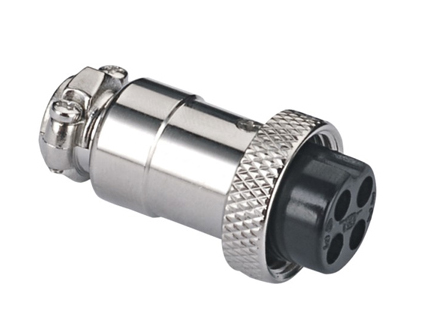

16M-A Описание

Description

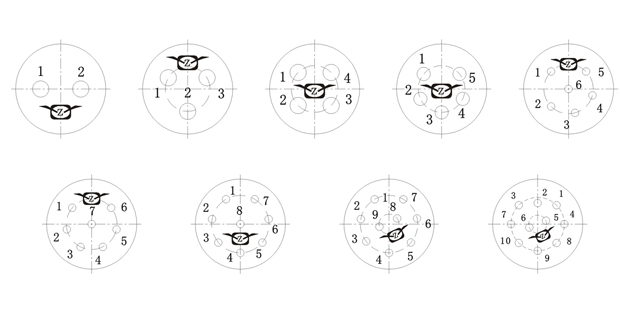

No. of Contacts 2 3 4 5 6 7 8 9 10
Part No. 16M-2A 16M-3A 16M-4A 16M-5A 16M-6A 16M-7A 16M-8A 16M-9A 16M-10A

Parts
Material
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy

No.Of contacts 2 3 4 5 6 7 8 9 10
Rated current/Voltage 7A 125V 7A 125V 5A 12V 5A 125V 4A 125V 4A 125V 4A 125V 4A 125V 4A 125V
Operation limt voltage(AC.Vrms) 200 200 200 200 200 200 200 200 200
Withstanding voltage(AC.V.rms)1 min. 1500 1500 1500 1500 1500 1500 1500 1500 1500
Insulation resistance (MΩ min.)at dc 500V 1500 1500 1500 1500 1500 1500 1500 1500 1500
Contact resistance(MΩ max.)at dc 1A 1.5 1.5 1.5 2 5 5 5 5 5

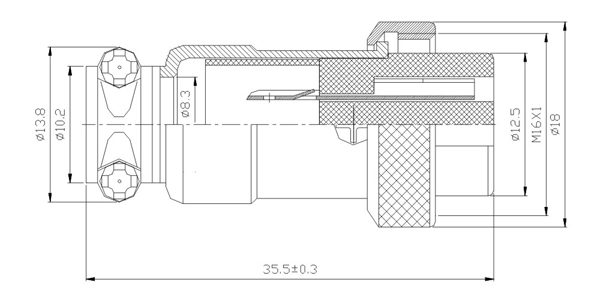

Solder inter diameter Φ2.45 Φ2.45 Φ 2.45 Φ 2 Φ 1.15 Φ 1.15 Φ 1.15 Φ 1.15 Φ 1.15
